Rear Wheel Housing Liner, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

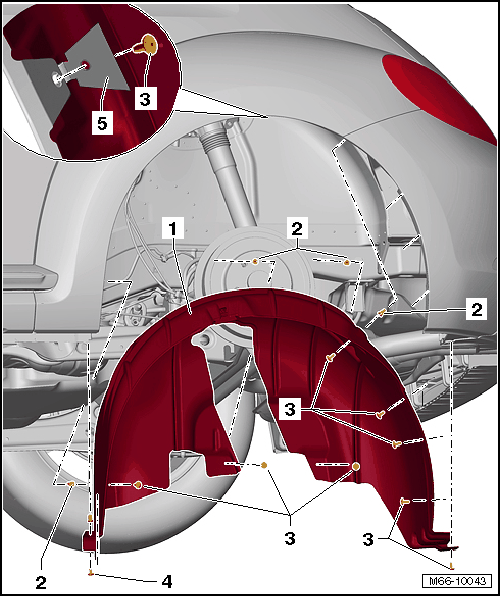

-- Remove the wheel. Refer to WHEEL CHANGING AND WHEEL INSTALLATION (CONVERTIBLE) .
-- Remove the sill panel cover if equipped. Refer to Sill Panel Cover .
-- If there is no sill panel cover installed, then remove the bolt -4-.
-- Remove the bolts -3- (quantity: 9).
-- Remove the wheel housing liner -1- from the fender.
