Overview - Hood

WARNING: This page is about a different variant/trim than selected.

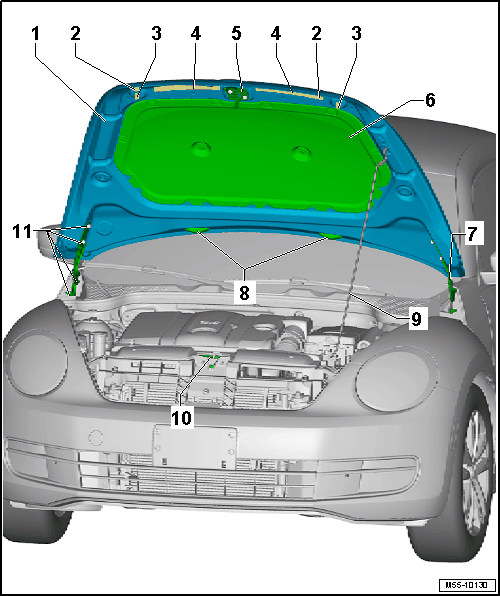

Fig 1: Locating Hood Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
Stop Buffer
Adjusting Buffer
Seal
- Left and right
- Removing and Installing. Refer to HOOD SEALS, REMOVING AND INSTALLING .
Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to Striker, Adjusting .
Insulation
- Not installed in all model versions
- Removing and Installing. Refer to INSULATION, REMOVING AND INSTALLING .
Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
Spray Nozzles
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING (CONVERTIBLE)
Support Rod
- Removing and Installing. Refer to SUPPORT ROD, REMOVING AND INSTALLING .
Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Adjusting. Refer to Latch, Adjusting .
Bolt
- 20 Nm
- Quantity: 4 on each side
