Latch, Adjusting
WARNING: This page is about a different variant/trim than selected.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

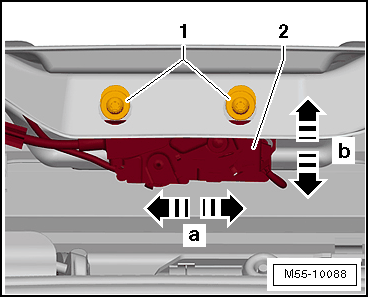

-- If the bolts -1- are loosened, the latch -2- can be adjusted from side to side in direction of -arrows a- and in height in direction of -arrows b-. Refer to =>
00 Body Gap Dimensions; Body Front.
