Hood Seals, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

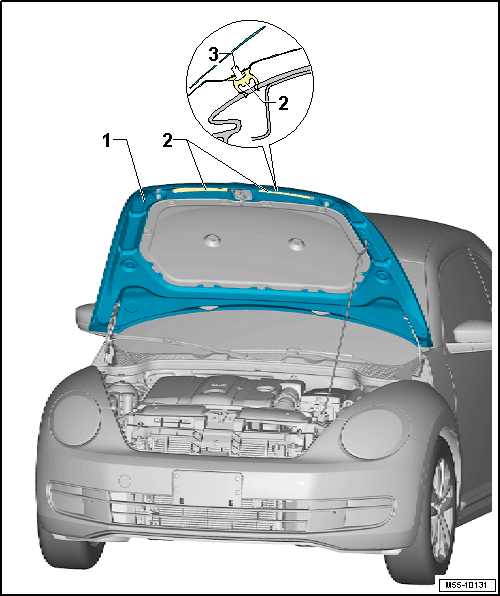

Fig 1: Identifying Hood Seals

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
Seal
- Left and right
- Removing:
  -- Remove the seal from the hood -1-.
- Installing:
  -- Push seal with the clips -3- into the hood -2-.
Clip
- Check for damage before installing and replace if necessary.
- Quantity of 4 per seal
