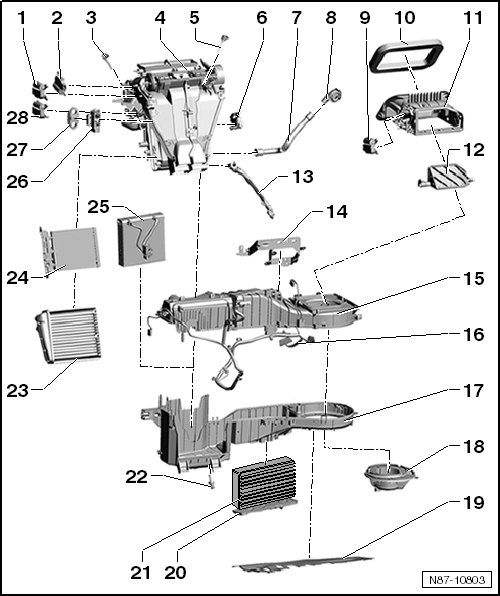

Overview - Heater And A/C Unit, CLIMATRONIC
WARNING: This page is about a different variant/trim than selected.
NOTE:
The removal and installation of the heater and A/C unit for vehicles with Climatronic is done according to the description. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Defroster Door Motor -V107-
- With the Defroster Door Motor Position Sensor -G135-
- Removing and installing . Refer to Defroster Door Motor -V107-, REMOVING AND INSTALLING .
- Front Air Distribution Door Motor -V426-
- With the Front Air Distribution Door Motor Position Sensor -G642-
- Removing and installing . Refer to Front Air Distribution Door Motor -V426-, REMOVING AND INSTALLING .
- Left Footwell Vent Temperature Sensor -G261-
- Removing and installing . Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
- Junction Box
- Right Footwell Vent Temperature Sensor -G262-
- Removing and installing . Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
- Right Temperature Control Door Motor -V159-
- With Right Temperature Control Door Position Sensor -G221-
- Removing and installing . Refer to Right Temperature Control Door Motor -V159-, REMOVING AND INSTALLING .
- Hose for Glove Compartment Cooling
- Removing and installing . Refer to GLOVE COMPARTMENT COOLING, REMOVING AND INSTALLING .
- Valve for the Glove Compartment Cooling
- Removing and installing . Refer to GLOVE COMPARTMENT COOLING, REMOVING AND INSTALLING .
- Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
- With the Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor -G644-
- Removing and installing . Refer to Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING .
- Seal
- Air Intake Housing
- Fresh Air Recirculation, Back Pressure Door
- Condensation Water Drain
- Removing and installing . Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
- Checking using the Vehicle Diagnostic Tester. Refer to CONDENSATION WATER DRAIN, CHECKING .
- Bracket
- Evaporator Housing Upper Section
- Overview. Refer to OVERVIEW - EVAPORATOR HOUSING .
- Wiring Harness for Heater and A/C Unit
- Evaporator Housing Lower Section
- Overview. Refer to OVERVIEW - EVAPORATOR HOUSING .
- Fresh Air Blower -V2-
- With Fresh Air Blower Control Module -J126-
- Removing and installing . Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .
- Fresh Air Blower Control Module -J126-, removing and installing . Refer to Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING .
- Footwell Trim Panel for the Front Passenger Side
- Removing and installing . Refer to Figure.
- Dust and Pollen Filter Cover
- Dust and Pollen Filter
- Dust and Pollen Filter Information. Refer to DUST AND POLLEN FILTER INFORMATION .
- Observe the replacement interval. Refer to the Maintenance, Diagnosis .
- There are different versions. Refer to the Parts Information.
- Removing and installing . Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
- Evaporator Temperature Sensor -G308-
- Removing and installing . Refer to Evaporator Temperature Sensor -G308-, REMOVING AND INSTALLING .
- Heater Core
- Removing and installing . Refer to HEATER CORE, REMOVING AND INSTALLING .
- Auxiliary Heater Heating Element -Z35-
- Only installed on vehicles with a diesel engine without an auxiliary coolant heater.
- Removing and installing . Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
- Evaporator
- Removing and installing . Refer to EVAPORATOR, REMOVING AND INSTALLING .
- Expansion Valve
- Removing and installing . Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
- Seal
- Left Temperature Control Door Motor -V158-
- With the Left Temperature Control Door Position Sensor -G220-
- Removing and installing . Refer to Left Temperature Control Door Motor -V158-, REMOVING AND INSTALLING .
