Rear Axle, Lowering

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Lower the Subframe with Attachments.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheels.

-- Remove the brake calipers on both sides of the vehicle and hang on the body.

-- Remove the coil springs. Refer to Installing .

-- Remove the rear muffler from the exhaust system. Refer to OVERVIEW - MUFFLER .

Vehicles with Left Rear Level Control System Sensor -G76-

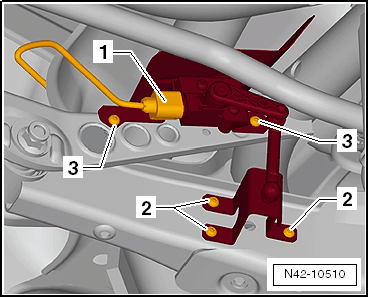

-- Disconnect the connector -1-.

Fig 1: Identifying Left Rear Level Control System Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for All Vehicles

-- Unclip the speed sensor wire out of the bracket -1- -arrows-.

Fig 2: Identifying Hose Retainer

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

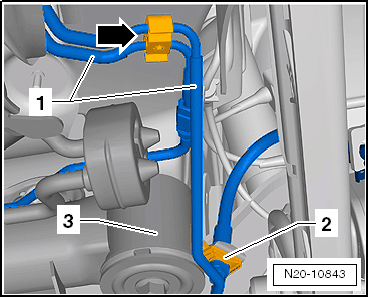

-- Unclip the brake lines -1- from the bracket -arrow- on the left side of the body.

Fig 3: Identifying Brake Line Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clip -2- from the subframe -3- and loosen the brake hose from it.

NOTE:

Do not disconnect the brake line.

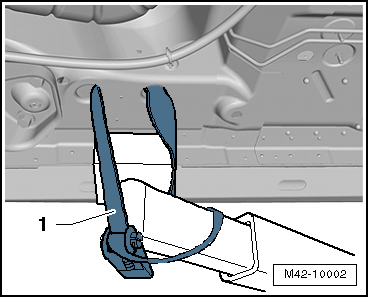

-- Secure both sides of the vehicle on the hoist lifting arms using the : T10038 .

Fig 4: Identifying Rear Axle, Lifting To Curb Weight Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

The vehicle could slide off the hoist if it is not secured.

-- Secure the subframe. Refer to SUBFRAME, SECURING .

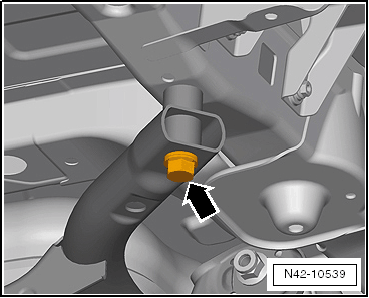

-- Remove the bolt from the back of the subframe on the right side -arrow-.

Fig 5: Identifying Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

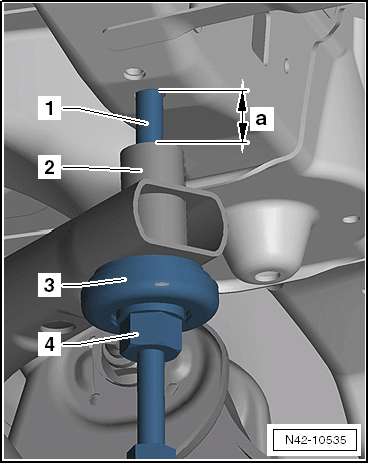

-- Install the :3346/2 with the :3301 and :3346/3 into the threaded hole in the longitudinal member.

Fig 6: Identifying Bearing Installer 3346/2 With Subframe Bushing Tool 3301 And Nut 3346/3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the left rear bolt from the subframe.

-- Turn the :3346/3 on the :3346/2 just enough to lower the subframe by -a- = 4 cm.

Subframe with Attachments, Installing

Install in reverse order of removal. Note the following:

-- Install the wheels and tighten to the tightening specification. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .

Tightening Specifications
