Spring, Removing And Installing: Installing

Install in reverse order of removal. Note the following:

-- Make sure the washer is not damaged.

-- Replace the washer if necessary.

-- Install the washer on the coil spring.

Fig 1: Identifying Spring Start Touching Spring Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The spring start -arrow- must touch the stop of lower spring support.

-- Install the spring and the spring support.

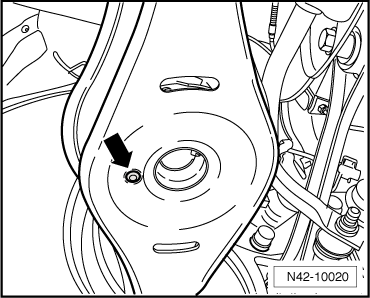

-- The lower spring support has a pin.

-- Insert this pin into hole of lower transverse link -arrow-.

Fig 2: Identifying Pin Inserted Into Hole Of Lower Transverse Link

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the top of the spring support into the upper spring end.

Fig 3: Locating Spring Support Bead

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The bead on the spring support -arrow- must fit into the coil spring correctly.

-- Release the tension on the spring, guiding upper spring support onto tab of body.

-- Remove the : VAG1752  .

-- Install the wheel and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
