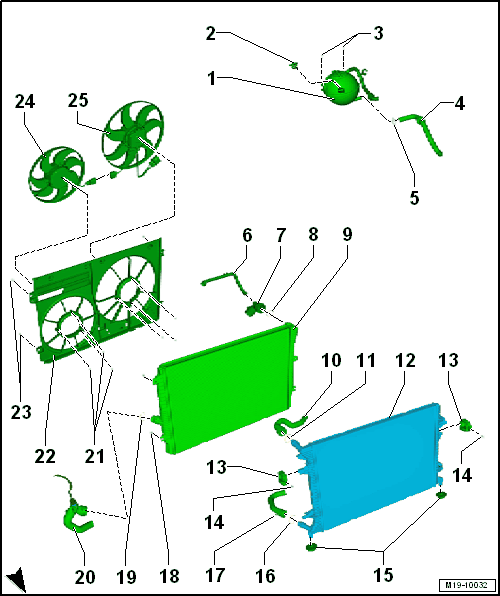

Overview - Radiator/Coolant Fan
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Reservoir
- Check the cooling system for leaks with the Cooling System Tester VAG1274B and Cooling System Tester - Adapter VAG1274/8, refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Bolts
- 5 Nm
- Connector
- For the Engine Coolant Level Sensor -G32-
- Coolant Hose
- Coolant Hose Connection Diagram, refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Clamp
- Coolant Hose
- Coolant Hose Connection Diagram, refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Coolant Hose
- with quick-release coupling on the radiator
- Coolant Hose Connection Diagram, refer to CONNECTION DIAGRAM - COOLANT HOSES .
- O-Ring
- Replace if damaged.
- Radiator
- Removing and installing, refer to RADIATOR .
- After replacing, replace entire amount of coolant.
- Coolant Hose Connection Diagram, refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Coolant Hose
- with quick-release coupling on the radiator for the charge air cooling circuit cooler
- Coolant Hose Connection Diagram, refer to CONNECTION DIAGRAM - COOLANT HOSES .
- O-Ring
- Replace if damaged.
- Cooler for the Charge Air Cooling Circuit
- Removing and installing, refer to CHARGE AIR COOLING CIRCUIT COOLER .
- Bracket
- Bolt
- 10 Nm
- Radiator Mount
- O-Ring
- Replace if damaged.
- Coolant Hose
- With quick-release coupling on the radiator for the charge air cooling circuit cooler
- Coolant Hose Connection Diagram, refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Radiator
- Removing and installing, refer to RADIATOR .
- After replacing, replace entire amount of coolant.
- Coolant Hose Connection Diagram, refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Bolt
- 5 Nm
- Quantity 4
- O-Ring
- Replace if damaged.
- Coolant Hose
- With quick-release coupling on the radiator
- Coolant Hose Connection Diagram, refer to CONNECTION DIAGRAM - COOLANT HOSES .
- The Engine Coolant Temperature Sensor on Radiator Outlet -G83- is located on the quick-release coupling, refer to Fig 2.
- Nut
- 10 Nm
- Fan Shroud
- Removing and installing, refer to FAN SHROUD WITH COOLANT FAN .
- Bolt
- 5 Nm
- Quantity 4
- Coolant Fan -V7-
- Removing and installing, refer to COOLANT FAN -V7- / RIGHT COOLANT FAN -V35- .
- Right Coolant Fan -V35-
- Removing and installing, refer to COOLANT FAN -V7- / RIGHT COOLANT FAN -V35- .
- Overview, refer to OVERVIEW - Engine Coolant Temperature Sensor on Radiator Outlet -G83- .
- Removing and installing, refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83- .
-- Remove the old O-ring -2- in the coolant hose -3-.
-- Coat the new O-ring with coolant and install it in the coolant hose.
-- Press the coolant hose onto the connection -1- until it engages audibly.
-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
