OVERVIEW - Engine Coolant Temperature Sensor on Radiator Outlet -G83-

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

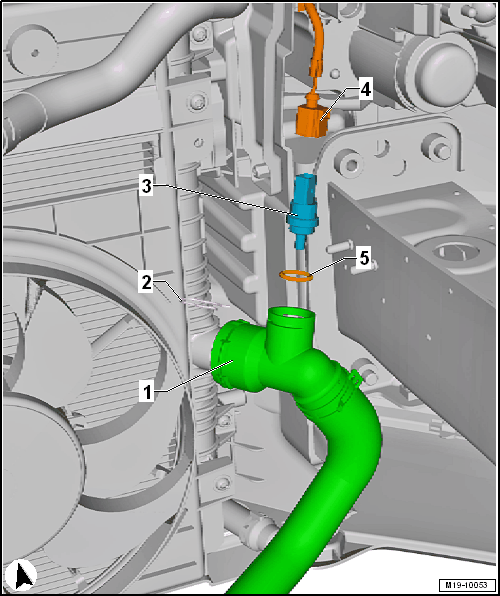

Fig 1: Identifying Engine Coolant Temperature Sensor On Radiator Outlet
GWWM19-10053Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Connection
  2. Clip
    • Make sure it is secure
  3. Engine Coolant Temperature Sensor on Radiator Outlet -G83-
  4. Connector
  5. O-Ring
    • Replace after removing
