Lower Control Arm Front Bonded Rubber Bushing

Special tools and workshop equipment required

• Assembly ToolT10219
• Press PlateVW402
• PunchVW 411
• Press Piece - Multiple UseVW412

-- Remove the control arm. Refer to LOWER CONTROL ARM, BASIS .

-- Remove the control arm (left side of the vehicle with DSG or automatic transmission). Refer to LOWER CONTROL ARM, ON LEFT SIDE, VEHICLES WITH DSG OR AUTOMATIC TRANSMISSION .

Pressing out the Bonded Rubber Mount

-- Press out bonded rubber bushings as depicted in the illustration below.

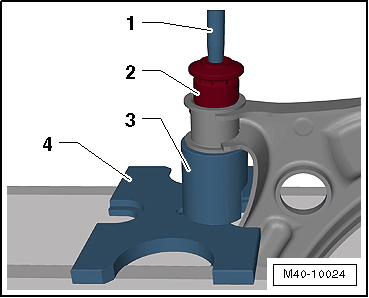

Fig 1: Identifying Press Piece, Press Plate And Tube

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. PunchVW 411
2. TubeT10219/1 (the hole must face the control arm)
3. Press PlateVW402

Installing the Bonded Rubber Bushing

-- Apply installation lubricantG 294 421 A1 onto outside of bonded rubber bushing.

-- Install the bonded rubber bushing as illustrated below.

Fig 2: Identifying Drift, Bushing, Press Plate And Tube

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. DriftT10219/2
2. Bonded Rubber Bushing
3. TubeT10219/1 (the hole must face the control arm)
4. Press PlateVW402

-- Install the bonded rubber bushing until the core -1- and the transverse link hole -2- are at the same height.

Fig 3: Installing Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press back bearing slightly in control arm.

Fig 4: Identifying Press Piece, Press Plate And Tube

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Press Piece - Multiple UseVW412
2. TubeT10219/1
3. Press PlateVW402

Dimensions -a- and -b- must be identical.

Fig 5: Identifying Dimensions

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the control arm. Refer to Installing .

-- Install the control arm (left side of the vehicle with DSG or automatic transmission).. Refer to Installing .
