Rear Lid Overview, Convertible: Notes

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Rear Lid

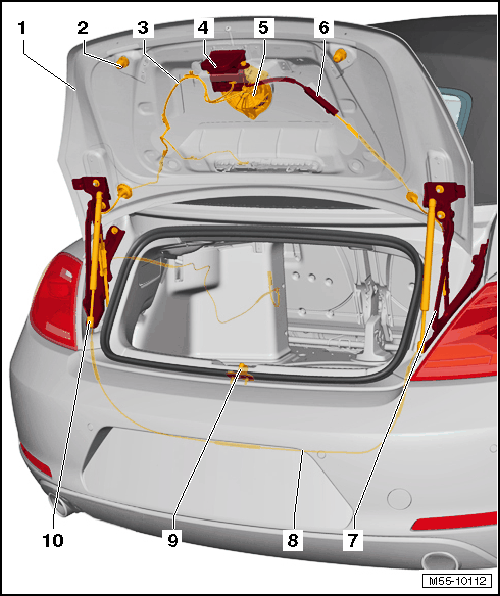

Fig 1: Locating Rear Lid Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Lid
Removing and Installing, refer to REAR LID, CONVERTIBLE .
Lower Adjusting Buffer
- Removing and Installing, refer to INSTALLING .
Electric Wire
Rear Lid Latch
Removing and Installing, refer to REAR LID LOCK, CONVERTIBLE .
Actuator
- Removing and Installing, refer to REAR LID ACTUATOR .
Release Cable Coupling Emergency Release
- Works the same as the hood release cable coupling, refer to HOOD RELEASE CABLE COUPLING, DISASSEMBLING AND ASSEMBLING .
Hinge
Assembly Overview, refer to HINGE .
Release Cable Emergency Release
- Assembly Overview, refer to EMERGENCY RELEASE
Rear Lid Catch
- Removing and Installing, refer to REAR LID LATCH .
Gas-Filled Strut
- Removing and Installing, refer to GAS-FILLED STRUT .
