Shift Mechanism Systems Overviews
WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Disconnect the ground cable from the battery when working on the shift mechanism inside the engine compartment, refer to [For engine(s) CVCA,CPRA,CPKA,CPLA,CJAA,CBUA,CPPA,CCTA,CBFA] Removal and Installation .
Connect the battery and follow the procedures to be performed after connecting the battery, refer to [For engine(s) CVCA,CPRA,CPKA,CPLA,CJAA,CBUA,CPPA,CCTA,CBFA] Removal and Installation .
Remove the air filter housing whenever working on the shift mechanism inside the engine compartment, refer to Removing . .
The shift mechanism must be removed in order to replace the operating cables, refer to SHIFT MECHANISM .
Do not bend the operating cables.

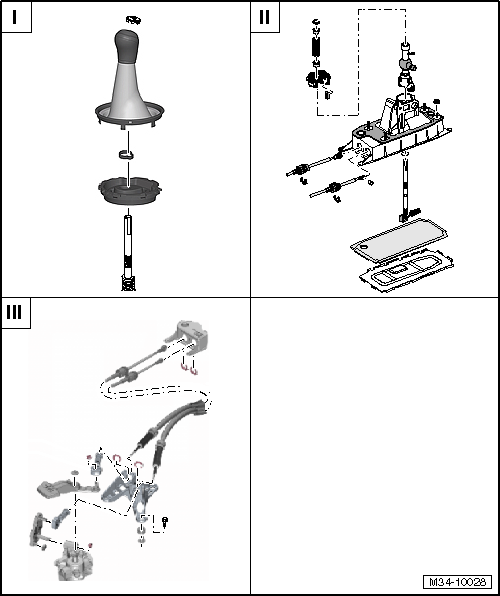

- I - Refer to SHIFT KNOB, BOOT AND NOISE INSULATION OVERVIEW
- II - Refer to SHIFT LEVER AND HOUSING OVERVIEW
- III - Refer to SHIFT CABLE AND SELECTOR CABLE OVERVIEW
