Overview - Cylinder Block, Belt Pulley Side

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

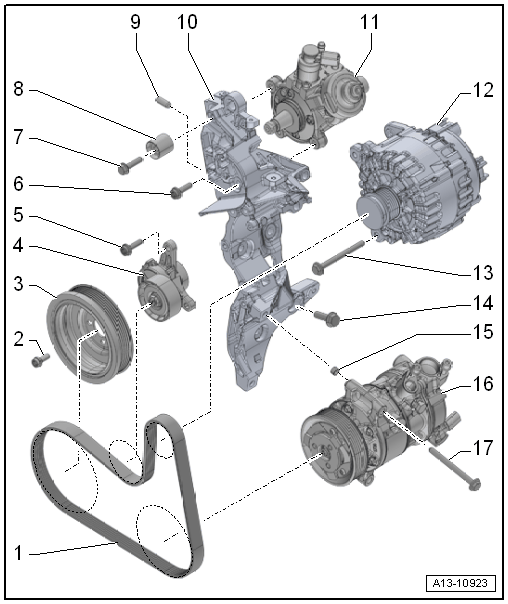

Fig 1: Identifying Cylinder Block, Belt Pulley Side Overview
GWWA13-10923Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Ribbed Belt
    • Check for wear
    • Before removing, mark the direction of rotation using chalk or a felt-tip pen.
    • Do not kink
    • Ribbed belt routing, refer to Installing
    • Removing and installing, refer to RIBBED BELT, REMOVING AND INSTALLING .
    • When installing, make sure it is seated correctly on the pulleys
  2. Bolt
    • 10 Nm + 90° turn
    • Use Original bolts only
    • Replace after removing
  3. Vibration damper
    • With ribbed belt pulley
    • Installed position: The hole inside the vibration damper must be positioned over the protrusion on the crankshaft toothed belt gear.
    • Removing and installing, refer to VIBRATION DAMPER .
  4. Ribbed Belt Tensioner
  5. Bolt
    • 20 Nm + 90° turn
    • Replace after removing
  6. Bolt
  7. Bolt
  8. Damper Roller
  9. Alignment Sleeve
    • Make sure the auxiliary component bracket fits correctly.
  10. Auxiliary Components Bracket
  11. High Pressure Pump
  12. Generator
  13. Bolt
  14. Bolt
    • There are different lengths, refer to Fig 2.
    • Tightening specification and sequence, refer to Fig 2.
  15. Alignment Sleeve
    • Make sure if fits correctly inside the A/C compressor.
  16. Air Conditioning (A/C) Compressor
  17. Bolt
Fig 2: Identifying Auxiliary Components Bracket With Bolts
GWWA13-10885Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Replace the bolts that were tightened with an additional turn after removing them.

-- Install the bolts as follows:

-- Tighten the bolts in steps in the sequence shown:

Step Bolts Tightening Specification/Additional Turn
1. -1 to 6- Install all the way in by hand.
2. -1 to 6- 40 Nm
3. -4- and -5- 180° additional turn
4. -1, 2, 3, 6- 45° additional turn
