Ribbed Belt, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

-- Refer to Mount the ribbed belt on the ribbed belt pulley:

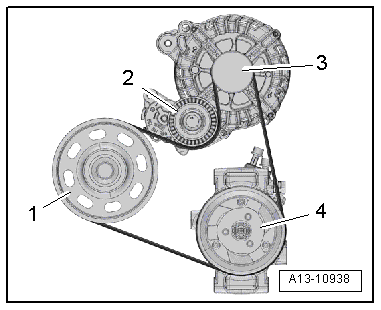

Fig 1: Identifying Vibration Damper, Tensioning Roller, Generator And A/C Compressor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vibration damper
Tensioning roller
Generator
A/C Compressor

-- Hold tensioner with wrench and remove the Locking PinT10060A.

-- Release the tensioner.

-- Check ribbed belt for correct positioning.

Fig 2: Identifying Locking Pin

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
