Engine, Securing On Engine And Transmission Holder

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Sling3033
Engine-Transmission JackV.A.G 1383 A
Shop CraneVAS 6100
Engine and Transmission HolderVAS 6095

NOTE:

To perform the procedure, secure the engine to the Engine And Transmission HolderVAS 6095/1 with the Universal MountingVAS 6095.

Procedure

-- Disconnect the transmission from the engine (vehicles with manual transmission), refer to ENGINE AND TRANSMISSION, SEPARATING, MANUAL TRANSMISSION .

-- Disconnect the transmission from the engine (vehicles with DSG transmission), refer to ENGINE AND TRANSMISSION, SEPARATING, DSG TRANSMISSION .

-- Engage Engine Sling3033 as follows and lift out using Workshop CraneVAS 6100 from Engine-Transmission JackV.A.G 1383 A.

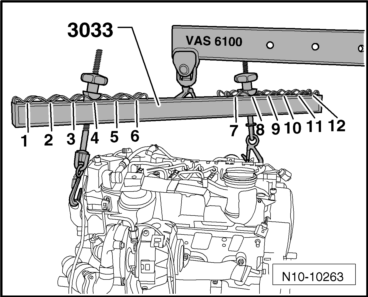

Fig 1: Identifying Lifting Tackle 3033/ Shop Crane VAS 6100

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Flywheel side: Position -4-.

Vibration damper side: position -8-.

-- Secure the engine to the Engine And Transmission HolderVAS 6095/1 with the Universal MountingVAS 6095.
