Engine And Transmission, Separating, Manual Transmission

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Additional Hooks10 - 222 A /2
Shop CraneVAS 6100
Bracket 2024 A /1, from the Engine Sling2024 A

Procedure

Fig 1: Identifying Console From Transmission, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine/transmission assembly removed and mounted on Engine/Transmission SupportT10012.

-- Remove bolts -arrows- and remove the transmission support.

-- Remove the bolts -1- and -2- and then remove the starter from the transmission.

Fig 2: Identifying Starter Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Hook the Engine Sling2024 A hooks on the transmission lifting eyes.

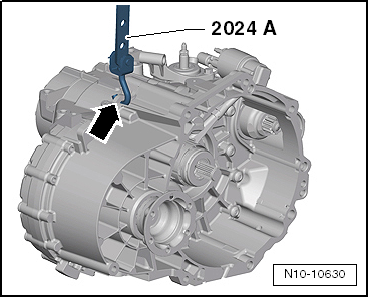

Fig 3: Identifying Engine Sling - Engine Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the hook with the securing pin -arrow-.

-- Attach the Workshop CraneVAS 6100 with the Adapter10 - 222 A /20 to the lifting tackle.

-- Remove the bolts -1, 2, 5, 6, 7 and 8- connecting the transmission to the engine.

Fig 4: Identifying Bolts On Engine/Transmission Flange, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove transmission from engine.
