Overview - Battery

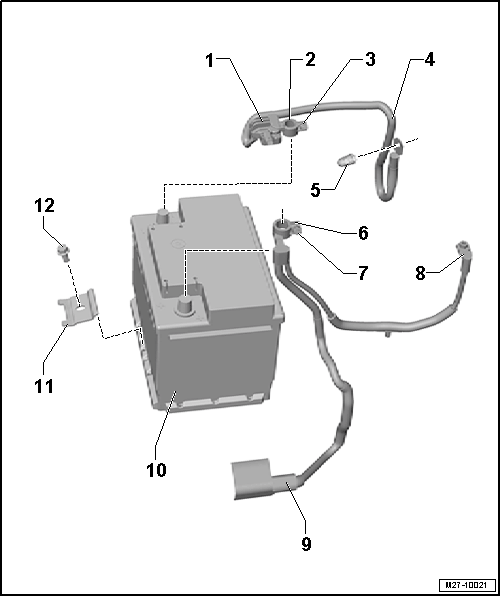

Fig 1: Battery Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Battery Monitoring Control Module -J367-
   • Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .
   • Adapting. Refer to Battery Monitoring Control Module -J367-, ADAPTING .
2. Battery Ground Cable Terminal Clamp
   • Pay attention to the threaded connector for the battery terminal Refer to BATTERY, GENERAL INFORMATION .
3. Nut
   • 6 Nm
4. Ground Cable to Body
   • Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .
   • Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
5. Nut
   • 20 Nm
6. Battery Positive Cable Terminal Clamp
   • Pay attention to the threaded connector for the battery terminal Refer to BATTERY, GENERAL INFORMATION .
7. Nut
   • 6 Nm
8. Positive Connection to the Engine Compartment E-box
9. Positive Connection to the Starter -B-
10. Battery -A-
    • Removing and Installing. Refer to BATTERY, REMOVING AND INSTALLING .
    • Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
    • Replacing on a vehicle with the Start/Stop System Vehicles with Start/Stop System
11. Clamping Plate
12. Bolt
    • 20 Nm

No Illustration

• Battery tray bolts (quantity: 3): 9 Nm
