Overview - Hood, Locking And Unlocking Components

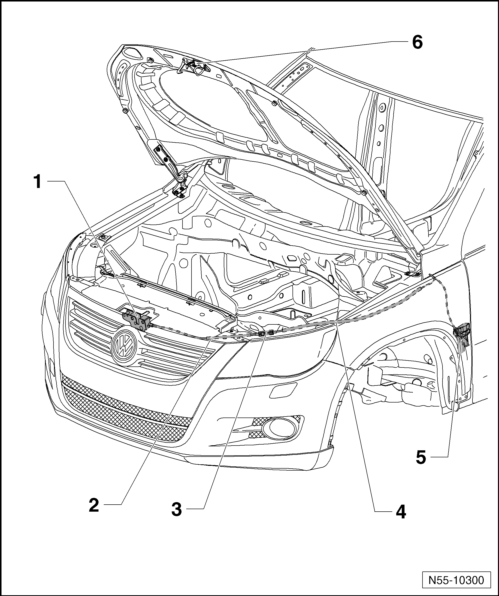

Fig 1: Identifying Hood Locking And Unlocking Components

1. Lid Latch
   • Removing and installing, refer to HOOD LATCH .
   • Adjusting, refer to HOOD LATCH, ADJUSTING .
2. Release Cable
   • From the hood lock to the cable coupling
   • Clipped inside the hood lock
3. Release Coupling
   • Disconnecting, refer to HOOD RELEASE, DISCONNECTING .
4. Release Cable
   • Clipped into mounting bracket
5. Release Lever
   • Removing and installing, refer to HOOD OPERATING LEVER .
6. Hook
   • Removing and installing, refer to HOOD CATCH .
