Hood Release, Disconnecting
Special Tools And Workshop Equipment Required
- Torque Wrench 1331 5-50 Nm VAG 1331
- Pry Lever 80-200
-- Open the hood.

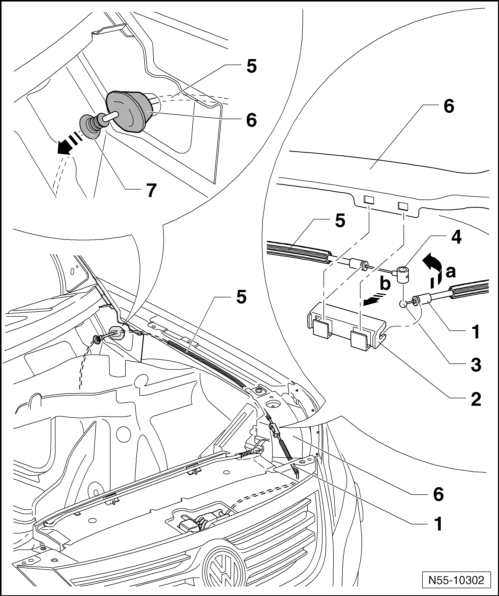

The release -2- is located on the lock carrier -6- above the headlamp on the driver side.
-- Remove the cable coupling -2- from the lock carrier -6- in the direction of -arrow b- .
-- Remove the cables -1 and 5- from the cable coupling.
-- Rotate the cable -1- in the direction of -arrow a- .
-- Remove the cable ball -3- -1- from the cable -5- mount -4- .
NOTE:
When installing, make sure that cable sleeves are inserted correctly and coupling is locked correctly on the lock carrier.
Make sure the grommets -6 and 7- are properly seated.
- Before closing the hood, test the release lever and the release.
