Hood Latch, Adjusting
NOTE:

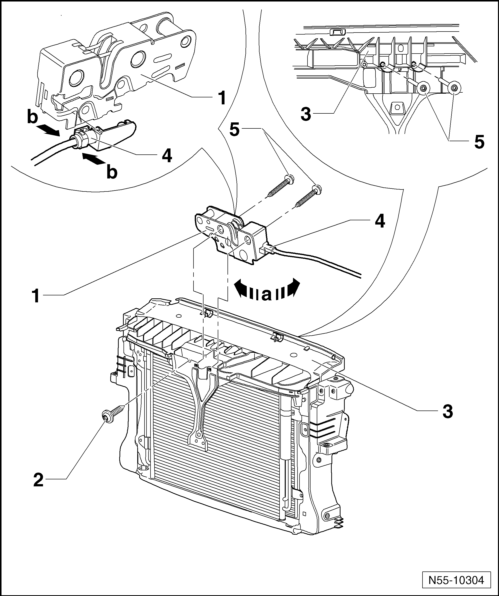

The hood remains installed. In the figure, the hood is removed.
-- Remove the radiator grille, refer to RADIATOR GRILLE THROUGH JUNE 2011 .
-- Loosen the front bolt -2- and the rear bolts -5- to adjust the hood panel gap dimension, refer to appropriate service information.
-- Bolts -2 and 5- tightening specifications: 12 Nm.
-- Adjust catches, refer to HOOD CATCH .
