Removing Air Guide Duct Rear Section
WARNING: This page is about a different variant/trim than selected.
-- Remove the left air supply duct. Refer to Removing Left Air Supply Duct .
-- Remove the right air supply duct. Refer to Removing Right Air Supply Duct .
-- Remove the Hybrid Battery Unit -AX1-. Refer to Hybrid Battery Unit -AX1-, REMOVING AND INSTALLING .

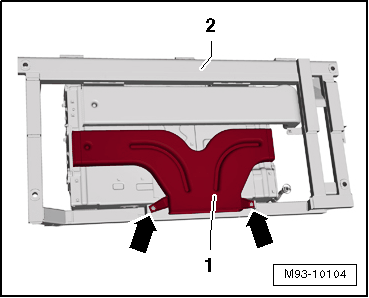

-- Remove the screws -arrows- on the bottom of the air supply duct -1- and then remove the air supply duct -1- from the Hybrid Battery Unit -AX1- -2-.
