Removing Left Air Supply Duct
WARNING: This page is about a different variant/trim than selected.
-- Remove the left exhaust air duct. Refer to BATTERY FAN AIR GUIDE CHANNEL, REMOVING AND INSTALLING - Removing Left Exhaust Air Duct .

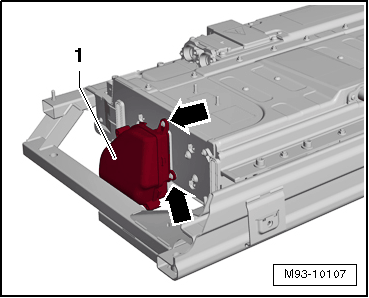

-- Remove the screws from the air supply duct -1- -arrows-.
-- Remove the air supply duct -1- from the Hybrid Battery Unit -AX1-.
