Removing Right Air Supply Duct

WARNING: This page is about a different variant/trim than selected.

-- Remove Battery Fan 1 -V457-.

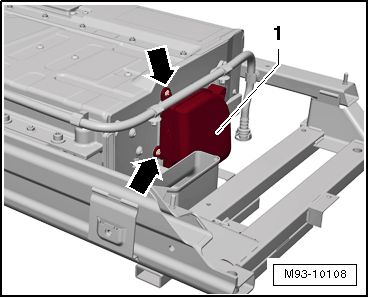

-- Remove the screws from the air supply duct -1- -arrows-.

GWWM93-10108Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air supply duct -1- from the Hybrid Battery Unit -AX1-.
