Overview - Shift Unit
WARNING: This page is about a different variant/trim than selected.

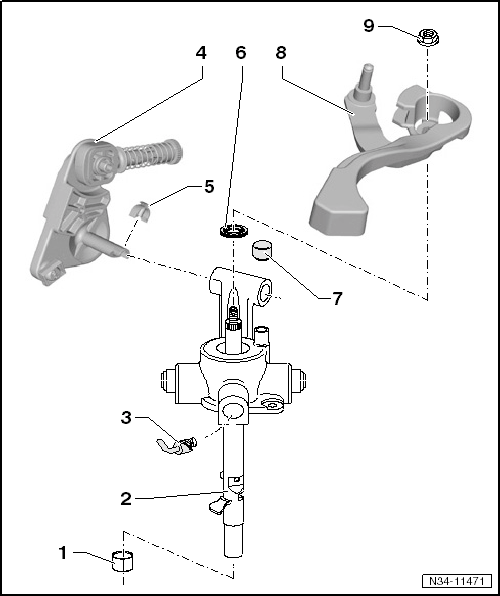

Lubricate the bearing areas and the sliding surfaces.
- Sleeve
- For the selector shaft
- Removing. Refer to TRANSMISSION HOUSING, SERVICING
- Installing. Refer to TRANSMISSION HOUSING, SERVICING
- Gearshift Shaft with Gearshift Cover
- Replace together
- Locking Elbow
- For adjusting the shift mechanism
- Removing. Refer to SHIFT UNIT, SERVICING .
- Installing. Refer to SHIFT UNIT, SERVICING
- Relay Lever
- Installed position. Refer to Selector Lever/Relay Lever Installed Position .
- Clip
- Seal
- For the selector shaft
- Replacing. Refer to SELECTOR SHAFT SEAL, REPLACING .
- Cap
- For the transmission ventilation
- Gearshift Lever
- Illustration can differ from the original parts
- Insert so that master spline aligns with shift rod. Refer to Installing the Transmission Shift Lever
- Can be replaced with the shift mechanism still installed
- Installed position. Refer to Selector Lever/Relay Lever Installed Position .
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Nut
- 23 Nm
- Replace after removing
- Self-locking
