Selector Lever/Relay Lever Installed Position

WARNING: This page is about a different variant/trim than selected.

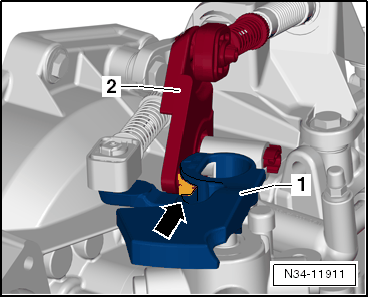

GWWN34-11911Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Gearshift Lever
  2. The relay lever fits into the sliding rail on the transmission selector lever via the sliding shoe -arrow-.
