Overview - Output Shaft 3

WARNING: This page is about a different variant/trim than selected.

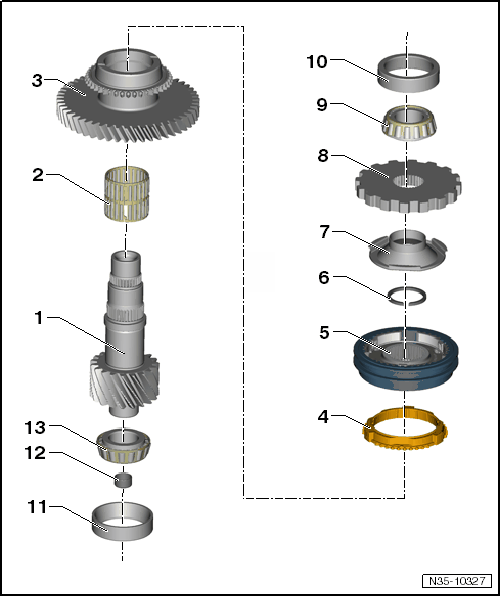

Fig 1: Exploded View Of Output Shaft 3
GWWN35-10327Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Output Shaft 3
  2. Needle Bearing
  3. Reverse Gear Wheel
  4. Synchronizer Ring
  5. Locking Collar and Reverse Gear Synchronizer Hub
  6. Circlip
  7. Stop Ring
  8. Parking lock gear
    • The flat side points to the shaft end, >>rounded<< side to the gear wheel for the reverse gear.
  9. Bearings
    • Always replace the bearing from a shaft together.
  10. Bearing Shell
  11. Bearing Shell
    • Removing and Installing. Refer to CLUTCH HOUSING, SERVICING .
      • The bearing shells may not be interchanged. The are paired with the bearing.
  12. Sleeve
    • Does not have to be removed.
    • Pry out using the screwdriver.
    • Drive in all the way by hand using Locking Pin :T10043  .
  13. Bearings
    • Always replace the bearing from a shaft together.
