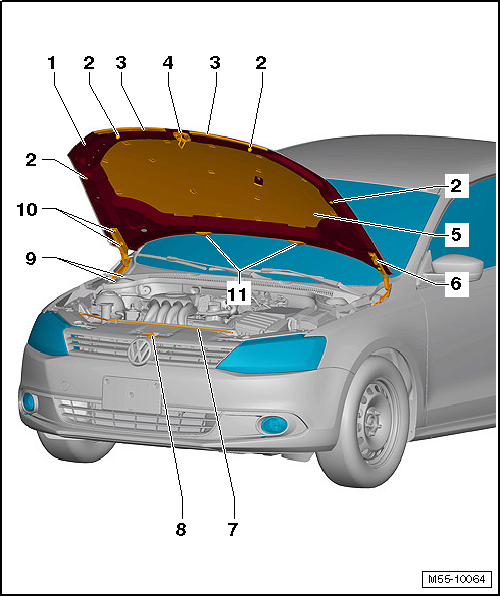

Overview - Hood Assembly
- Hood
- Removing and installing, refer to HOOD .
- Adjusting, refer to HOOD, ADJUSTING .
- Adjusting Buffer
- Center Seal
- Left and right
- Catch
- Removing and installing, refer to HOOD CATCH .
- Adjusting, refer to CATCH, ADJUSTING .
- Insulation
- Removing and installing, refer to INSULATION .
- Hinge
- Removing and installing, refer to HOOD HINGE .
- Adjusting, refer to HOOD, ADJUSTING .
- Support Rod
- Removing and installing, refer to SUPPORT ROD .
- Hood Latch
- Removing and installing, refer to HOOD LATCH .
- Adjusting, refer to HOOD LATCH, ADJUSTING .
- Bolt
- Tightening specification 22 Nm.
- Quantity: 2 on each side
- Nut
- Tightening specification 22 Nm.
- Quantity: 2 on each side
- Spray Nozzles
- Removing and Installing, refer to Removal and Installation .
