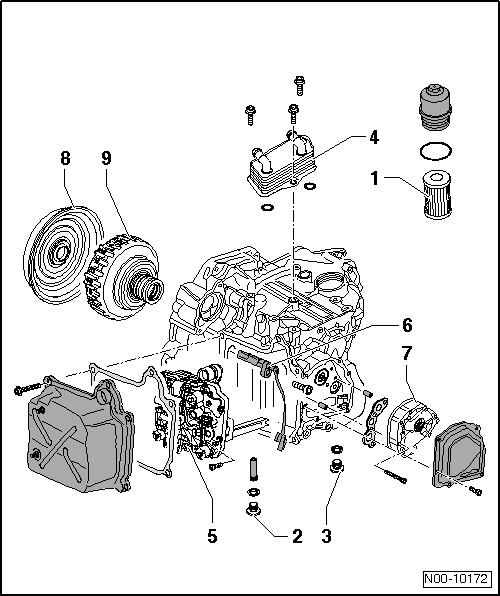

Transmission Component Overview
WARNING: This page is about a different variant/trim than selected.
- Filter
- Information on changing the filter, refer to WHEN TO CHANGE THE OIL FILTER .
- Inspection Plug
- Near the pendulum support.
- Oil Drain Plug
- See, DSG TRANSMISSION FLUID .
- This plug is no longer installed as of September 2004. The fluid l can be drained through the inspection plug.
- Transmission Oil Cooler , refer to TRANSMISSION FLUID COOLER .
- DSG Transmission Mechatronic -J743- , refer to ELECTRONIC COMPONENTS .
- Transmission Input Speed Sensor -G182- and Clutch Oil Temperature Sensor -G509- , refer to ELECTRONIC COMPONENTS .
- Oil Pump , refer to OIL PUMP .
- Multi-Plate Clutch Cover
- Multi-Plate Clutch , refer to CLUTCH .
