Electronic Components
WARNING: This page is about a different variant/trim than selected.

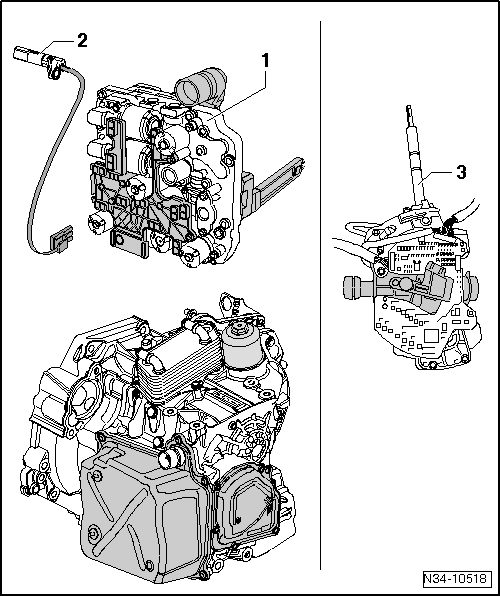

The electric/electronic components are located inside the transmission.
The selector lever sensor system control module -J587- and the shift lock solenoid -N110- are located on the selector lever.
- DSG Transmission Mechatronic -J743-
- Behind the large metal cover.
- Removing and installing, with transmission installed. Refer to DSG Transmission Mechatronic -J743-, TRANSMISSION INSTALLED .
- Removing and installing, with transmission removed. Refer to DSG Transmission Mechatronic -J743-, TRANSMISSION REMOVED .
- Transmission Input Speed Sensor -G182- and Clutch Oil Temperature Sensor -G509-
- The DSG transmission Mechatronic must be removed first before the sensor can be removed. Refer to DSG Transmission Mechatronic -J743-, TRANSMISSION INSTALLED .
- Selector Lever -E313-
