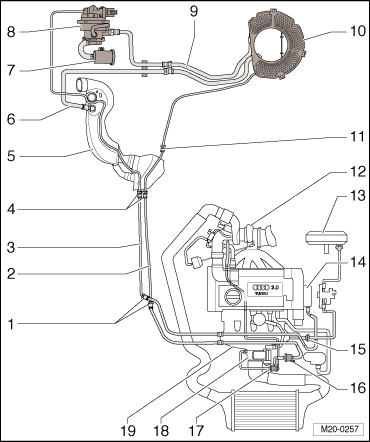

Evaporative Emission System Overview
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Separating Point
- At the right front in the engine compartment under the coolant expansion tank.
- Vent Line
- White
- From the Evaporative Emission (EVAP) canister to EVAP canister purge regulator valve
- Component location: Right side, beneath vehicle floor.
- Secured to the fuel tank in the fuel tank area.
- Vent Line
- Green
- From the engine to Leak Detection Pump (LDP).
- Component location: Right side, beneath the vehicle floor.
- Secured to the fuel tank in the fuel tank area.
- Separating Point
- At the right front on the fuel tank in the area of the fuel filter.
- Fuel Filler Tube
- Vent Line
- From the fuel filler tube to the EVAP canister.
- Clipped onto the bracket.
- Air Filter Housing
- For the LDP.
- Leak Detection Pump (LDP) -V144-
- Component location: Under the wheel housing liner in the right rear wheel housing.
- Removing and installing, refer to LEAK DETECTION PUMP .
- Fuel system, checking for leaks. Refer to FUEL/EVAP SYSTEM, CHECKING FOR LEAKS .
- Connecting Pipe
- From the LDP to the EVAP canister.
- Clipped onto the bracket.
- Evaporative Emission (EVAP) Canister
- Component location: Bottom of the spare tire wheel well.
- Removing and installing, refer to EVAP CANISTER .
- Separating Point
- At the right rear on the fuel tank.
- Turbocharger
- Removing and installing, refer to TURBOCHARGER .
- Brake Booster
- Vacuum Pump
- Non Return Valve
- Installed position: Arrow points in direction of flow.
- Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 -N80-
- Component location: At the front in the engine compartment.
- Double Check Valve
- Checking, refer to DOUBLE CHECK VALVE, CHECKING .
- Throttle Valve Control Module -J338-
- Removing and installing, refer to THROTTLE VALVE CONTROL MODULE .
- Intake Manifold
- Assembly overview, refer to INTAKE MANIFOLD ASSEMBLY OVERVIEW .
- Removing and installing, refer to INTAKE MANIFOLD .
