Evaporative Emission System Assembly Overview
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

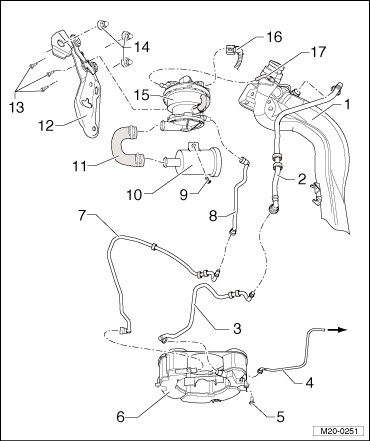

- Fuel Tank
- Vent Line
- Behind the wheel housing liner.
- Vent Line
- On the vehicle floor.
- Vent Line
- To the Evaporative Emission (EVAP) canister purge regulator valve at the intake manifold.
- To remove, press the release button.
- Bolt, 8 Nm
- Evaporative Emission (EVAP) Canister
- Component location: Bottom of the spare tire wheel well.
- Removing and installing, refer to EVAP CANISTER .
- Connecting Pipe
- Pressure side.
- On the vehicle floor.
- Connecting Pipe
- Pressure side.
- Behind the wheel housing liner.
- Bolt, 3 Nm
- Air Filter Housing
- For the Leak Detection Pump (LDP)
- Connecting Hose
- Intake side.
- Bracket
- For the LDP.
- Mounted under the wheel housing liner.
- Bolt, 2 Nm
- Nut, 6 Nm
- Leak Detection Pump (LDP) -V144-
- Component location: Under the wheel housing liner in the right rear wheel housing.
- Removing and installing, refer to LEAK DETECTION PUMP .
- Fuel system, checking for leaks. Refer to FUEL/EVAP SYSTEM, CHECKING FOR LEAKS .
- Connector
- Black, 3 pin.
- Vacuum Line
- From the intake manifold.
