Component Locations

The control module for diesel direct fuel injection system is equipped with a DTC memory. Before and after repairs or adjustments, the DTC memory must be checked.

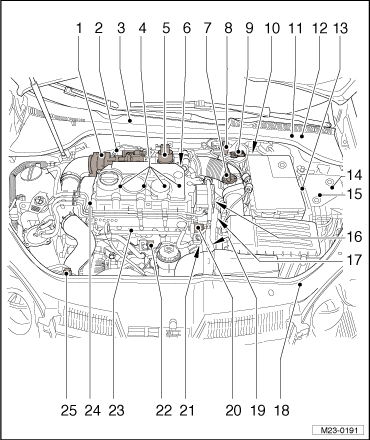

Fig 1: Identifying Fuel Injection System Component Locations, Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Intake flap motor -V157-
   • Removing and installing, refer to INTAKE FLAP MOTOR .
2. Electrical EGR vacuum regulator solenoid valve - N18- with EGR potentiometer -G212-
   • Removing and installing, refer to INTAKE CONNECTION WITH ELECTRICAL EGR VACUUM REGULATOR SOLENOID VALVE AND POTENTIOMETER .
3. Engine control module
   • Removing and installing, refer to REMOVAL AND INSTALLATION .
4. Pump injector units
   • Pump injector valve (cylinder 1) - N240-
   • Pump injector valve (cylinder 2) - N241-
   • Pump injector valve (cylinder 3) - N242-
   • Pump injector valve (cylinder 4) - N243-
   • Pump injector units, removing and installing, refer to PUMP INJECTOR UNIT .
5. Turbocharger (TC) vane position sensor -G500-
   • Removing and installing, refer to TURBOCHARGER ASSEMBLY OVERVIEW .
6. Exhaust Gas Recirculation (EGR) cooler switch over valve -N345-
   • Component location, refer to Fig 4
7. Mass air flow (MAF) sensor -G70-
   • Removing and installing, refer to AIR FILTER ASSEMBLY OVERVIEW .
8. Wastegate Bypass Regulator Valve -N75 -
   • Component location, refer to Fig 2
9. 6-pin harness connector
   • For Heated Oxygen Sensor (HO) -G39-
   • Component location, refer to Fig 5
10. Clutch position sensor -G476-
    • Component location, refer to Fig 15
11. Throttle Position (TP) sensor -G79- /accelerator pedal position sensor 2 -G185-
    • Component location, refer to Fig 13
12. Brake light switch -F- and brake pedal switch -F47-
    • Component location, refer to Fig 14
13. Relay carrier
    • Under the engine compartment E-box
    • With automatic glow time control module -J179-
    • Component location, refer to Fig 17
14. Fuel Pump (FP) relay -J17-
    • Component location, refer to Fig 18
15. Relay and fuse carrier E-Box, engine compartment
    • With power supply relay (terminal 30, B+) - J317-
    • With power supply relay (terminal 15, B+) - J329-
    • Component location, refer to Fig 16
16. Tandem pump
    • Checking, refer to TANDEM PUMP, CHECKING .
    • Removing and installing, refer to TANDEM PUMP .
17. Engine Coolant Temperature (ECT) sensor -G62-
    • Component location, refer to Fig 6
    • If necessary release pressure in cooling system before removing
18. Engine Coolant Temperature (ECT) sensor (on radiator) -G83-
    • Installation location, refer to Fig 12
19. Fuel temperature sensor -G81-
    • Component location, refer to Fig 7
20. Multi-pin harness connector
    • For pump injector units
    • Component location, refer to Fig 11
21. Engine speed (RPM) sensor -G28-
    • Component location, refer to Fig 8
22. 3-pin harness connector
    • For hall sender -G40-
    • Component location, refer to Fig 9
23. Glow plugs
    • Glow plug 1 -Q10-
    • Glow plug 2 -Q11-
    • Glow plug 3 -Q12-
    • Glow plug 4 -Q13-
    • Checking, removing and installing, refer to GLOW PLUG IDENTIFICATION .
24. Camshaft Position (CMP) sensor -G40-
    • For camshaft position
    • Component location, refer to Fig 10
25. Charge air pressure sensor -G31- with Intake Air Temperature (IAT) sensor -G42-
    • Component location, refer to Fig 3

Fig 2: Locating Wastegate Bypass Regulator Valve -N75-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

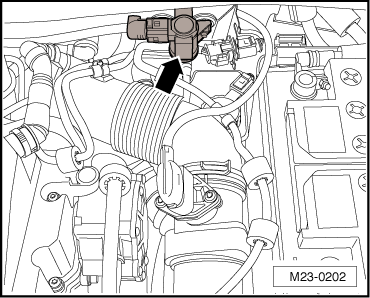

• On bulkhead at left -arrow-.

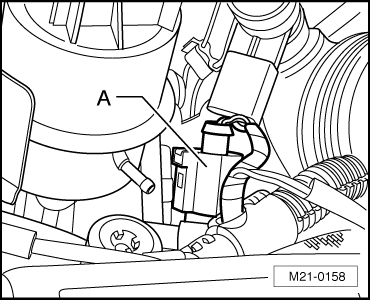

Fig 3: Identifying Charge Air Pressure Sensor G31 Electrical Harness Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• In air guide tube behind the radiator -arrow-.

Fig 4: Locating Exhaust Gas Recirculation (EGR) Cooler Switch Over Valve -N345-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• On the left side and behind the cylinder head

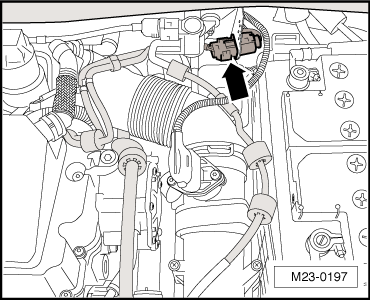

Fig 5: Locating Heated Oxygen Sensor (HO2S) -G39- Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• On bulkhead at left -arrow-.

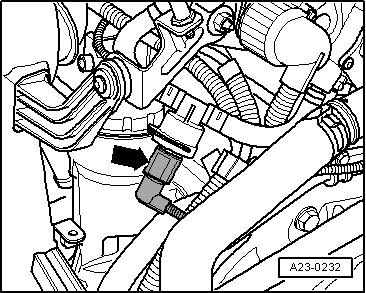

Fig 6: Locating Engine Coolant Temperature (ECT) Sensor G62

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Left on engine.

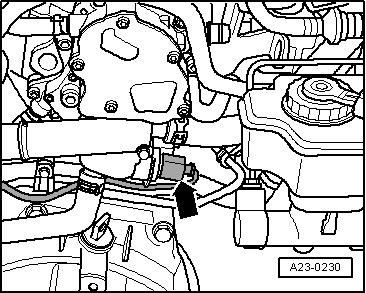

Fig 7: Locating Fuel Temperature Sensor G81

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The sensor -arrow- is located on left front of engine.

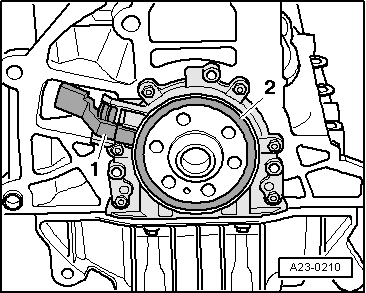

Fig 8: Locating Engine Speed (RPM) Sensor G28

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• On flywheel side of engine.

1. Engine speed (RPM) sensor -G28-
2. Sensor wheel

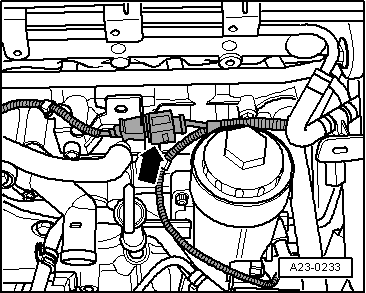

Fig 9: Locating 3-Pin Harness Connector For Camshaft Position (CMP) Sensor G40

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• At front on engine, under the intake manifold.

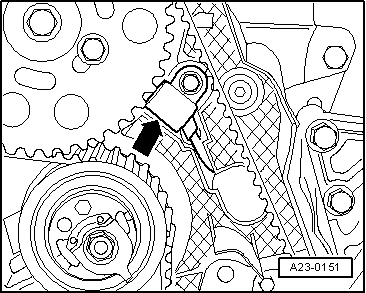

Fig 10: Locating Camshaft Position (CMP) Sensor G40

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• At right of engine on camshaft gear.

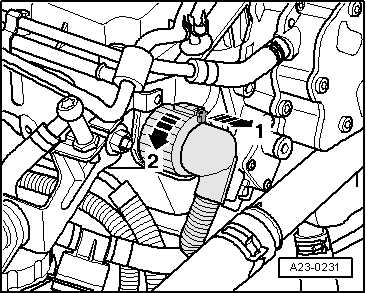

Fig 11: Locating Multi-Pin Harness Connector For Pump-Injector Units

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• To disconnect the connector, pull the release pin -arrow 1- and loosen the knurled nut -arrow 2-.

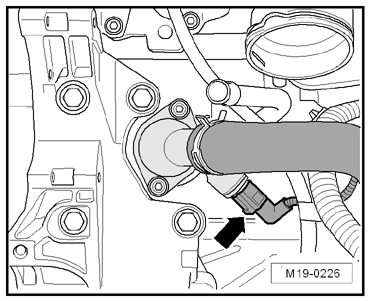

Fig 12: Locating Engine Coolant Temperature (ECT) Sensor (on Radiator) -G83-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The Engine Coolant Temperature (ECT) sensor (on radiator) -G83- -arrow- is located in the right front coolant thermostat connecting piece on the engine.

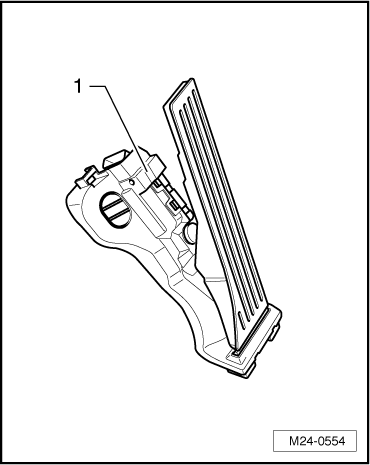

Fig 13: Identifying Throttle Position (TP) Sensor G79 With Accelerator Pedal Position Sensor 2 G185 (In Drivers Side Footwell)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• In driver side foot well.
• Removing and installing, refer to ACCELERATOR PEDAL MODULE .

Fig 14: Identifying Brake Light Switch F And Brake Pedal Switch F47

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Removing and Installing, refer to Removal and Installation .

Fig 15: Locating Clutch Position Sensor G476

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Removing and installing, refer to [For transmission(s) 0A4] Removal and Installation .

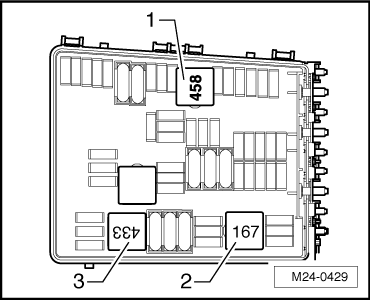

Fig 16: Locating Relay And Fuse Carrier E-Box, Engine Compartment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Power supply relay (terminal 30, B+) -J317 - -1-.
• Power supply relay (terminal 15, B+) -J329 - -3-.

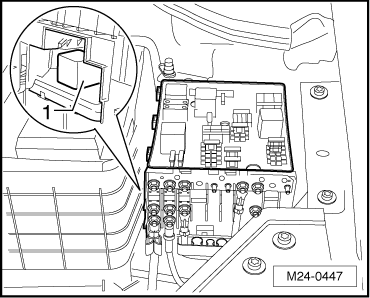

Fig 17: Locating Automatic Glow Time Control Module J179

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• In the engine compartment E-box -1-.

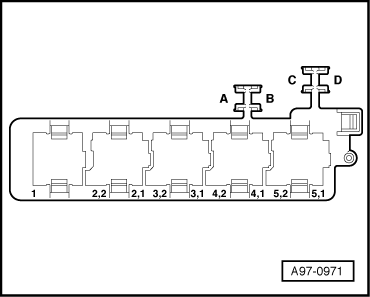

Fig 18: Locating Fuel Pump (FP) Relay J17

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Position -2.1- in 5-pin relay carrier above the vehicle electrical system control module under the driver side instrument panel.
