Intake Connection With Electrical EGR Vacuum Regulator Solenoid Valve And Potentiometer

WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the intake flap motor - V157-, refer to INTAKE FLAP MOTOR .

-- Remove noise insulation, refer to Removal and Installation .

-- Remove connecting pipe -6- from intake connection -4-. Do this by removing bolts -7-.

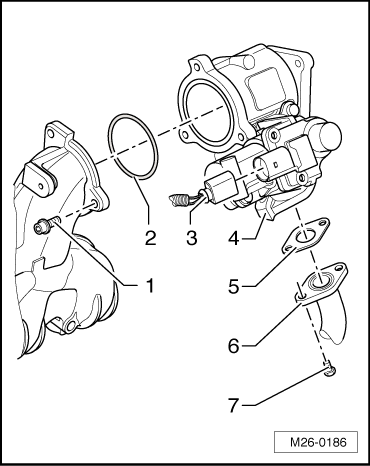

Fig 1: Identifying Connecting Pipe, Intake Connection, Bolts, Connector, Seal & Gasket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release connector -3- from intake connection -4- and pull off.

-- Remove bolts -1- and remove intake connection -4-.

Installing

Installation is performed in reverse order. When doing this note the following:

-- Replace the seal -2- and the gasket -5-.

Fig 2: Identifying Connecting Pipe, Intake Connection, Bolts, Connector, Seal & Gasket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tight the bolt -1- to 10 Nm and bolt -7- to 22 Nm.

-- Install the intake flap motor - V157-, refer to INTAKE FLAP MOTOR .
