Intake Flap Motor

WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque wrench V.A.G 1331

Removing

-- Remove engine cover.

One Piece Engine Cover

Fig 1: Identifying Removal Of One Piece Engine Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Pull the one piece front engine cover -arrows A- upward with a quick jerk and then pull the lower mount -arrow B- forward.

Two Piece Engine Cover

Fig 2: Identifying Removal Of Two Piece Engine Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

On the two piece engine cover, first pull the outer cover upward with a quick jerk -arrows in the upper illustration-, then pull the inner engine cover upward with a quick jerk -arrows in lower illustration-.

NOTE:

The hoses -2- remain connected.

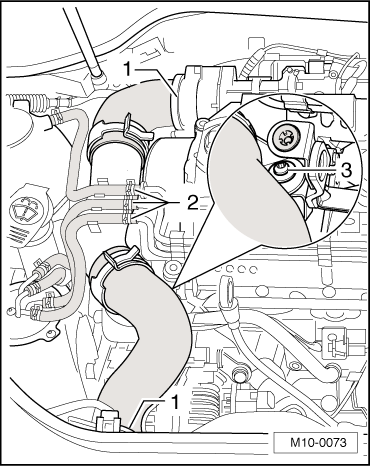

Fig 3: Identifying Bolt And Clips To Remove Air Duct

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove air duct. To do this slightly lift the clips -1- and remove the bolt -3- from the transport strap.

-- Disconnect connector -arrow- at intake flap motor -V157-.

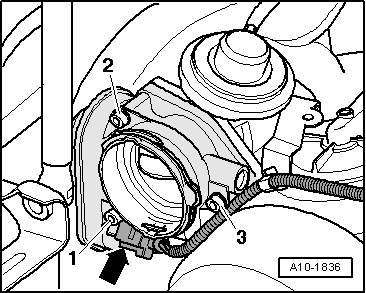

Fig 4: Identifying Intake Flap Motor V157 Connector & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolts -1 to 3- and remove intake flap motor -V157-.

Installing

Installation is performed in reverse order. When doing this note the following:

NOTE:

Always replace gaskets and seals.

Pay attention to the information when installing the air guide pipe to the connector, refer to WITH CONNECTION COUPLINGS .

Secure all hose connections with hose clamps.

-- Tighten bolts for intake flap motor -V157- to 10 Nm.
