Seat Drawer Mount

Removal

-- Remove seat drawer -1- from mount.

-- Remove front seat. Refer to FRONT SEAT .

-- Remove left trim on seat:

• Seat without folding backrest. Refer to LEFT SEAT TRIM .
• Seat with folding backrest. Refer to RIGHT FOLDING PASSENGER SEAT TRIM .

-- Remove bolt -2- (2 Nm).

-- Remove bolts -3- (2 Nm).

-- Remove mount -4- from seat frame.

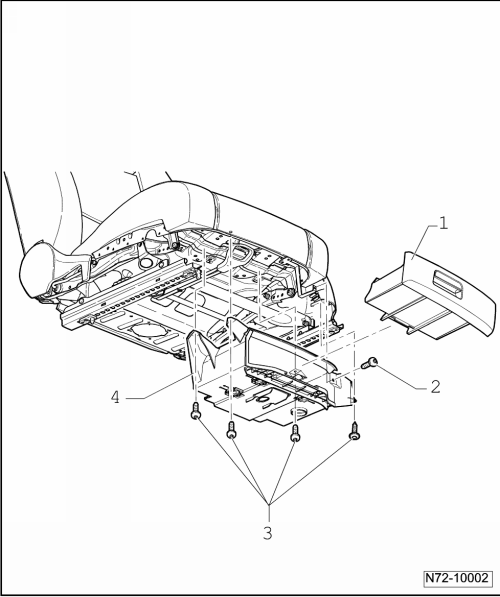

Fig 1: Identifying Mount For Seat Drawer Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
