Right Folding Passenger Seat Trim

Removal

-- Press metal tab of securing clip -2- inward using a small screwdriver and pull off handle -3- from adjustment lever -1-.

NOTE:

For clarity, securing clip is depicted as removed in the illustration.

-- Remove the clip -2- from adjusting lever -1-.

-- Grasp with 3399 behind backrest release lever -4-.

-- Pry 3399 outward -arrow A- and remove backrest release lever from seat.

-- Using 3399, reach behind a locking mechanism of backrest adjusting wheel -5-.

-- Pry 3399 outward -arrow B- and remove backrest adjusting wheel from seat.

-- Press clamping pin -6- and remove the clip -7-.

-- Remove trim -8- in direction of travel out of mounts in seat frame.

-- Remove trim -9- from seat frame.

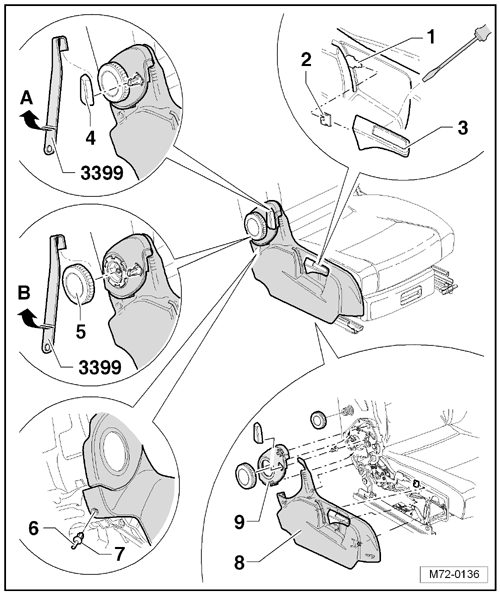

Fig 1: Identifying Right Trim On Foldable Passenger Seat Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
