Bumper Cover With Attachments

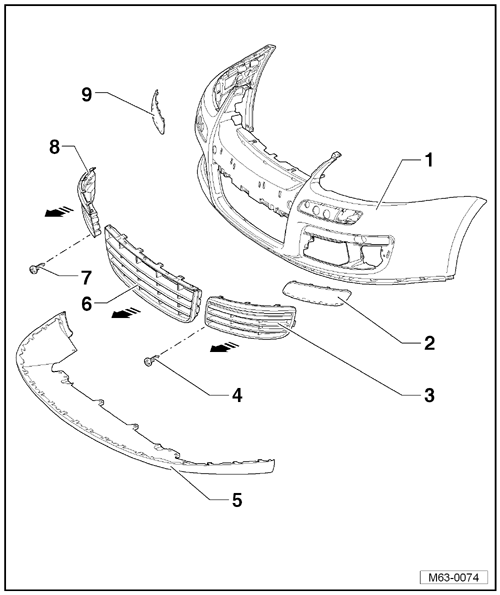

Fig 1: Front Bumper Cover With Attachments

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bumper Cover
- PP/EPDM material
- Removing and installing, refer to FRONT BUMPER COVER .
Left Protective Molding
- PP/EPDM material
- Different versions for vehicles with headlamp cleaning system.
- Locked to bumper cover.
- Can be carefully released from locking mechanisms using a plastic wedge from outside and removed.
Left Vent Grille
- Different versions for vehicles with fog lights.
- Removing and installing, refer to FRONT BUMPER VENT GRILLE .
Bolt
- 1.5 Nm
Spoiler
- Material PC/ABS
- Locked to cover
- To be removed only with bumper cover removed.
Center Vent Grille
- Pull forward out of locking mechanism in -direction of arrow-.
Bolt
- 1.5 Nm
Right Vent Grille
- Different versions for vehicles with fog lights
- Removing and installing, refer to FRONT BUMPER VENT GRILLE .
Right Protective Molding
- PP/EPDM material
- Different versions for vehicles with headlamp cleaning system.
- Locked to bumper cover.
- Can be carefully released from locking mechanisms using a plastic wedge from outside and removed.
