Front Bumper Vent Grille

Removing

NOTE:

Removal and installation is described only for the left-hand side. Removing and installing right side is derived accordingly from this.

-- Remove the bolt -1-.

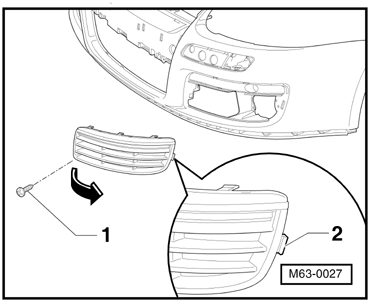

Fig 1: Vent Grille, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully turn the vent grille in the -direction of arrow- so the outer tab -2- does not break off.

NOTE:

Pull the air grille out of the bumper at the inner trim molding and tilt the air grille from the bumper outwards.

Installation

Install in reverse order of removal.
