Rear Double Belt Latch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Removal

SEDAN

-- Remove seat bench. Refer to SEAT BENCH .

WAGON

-- Fold the bench seat forward.

ALL VEHICLES

-- Remove the backrest. Refer to BACKREST .

-- Remove the bolt -1- (40 Nm) and remove double seat belt latch -2- from body.

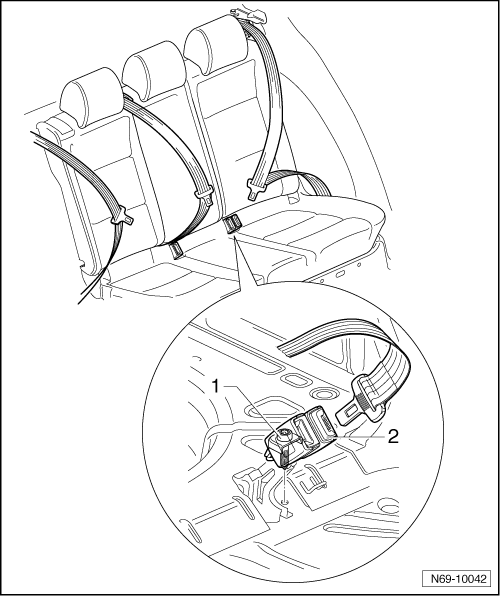

Fig 1: Identifying Rear Double Belt Latch Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
