Seat Bench

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Removal

-- Unclip four guides -1- from child seat anchors -2-.

-- In forward area, pull seat bench -3- upward out of the two mounts -4- -arrows A-.

-- Push the bench seat toward rear -arrow B-.

-- In rear area, pull seat bench upward.

-- Remove the bench seat from vehicle.

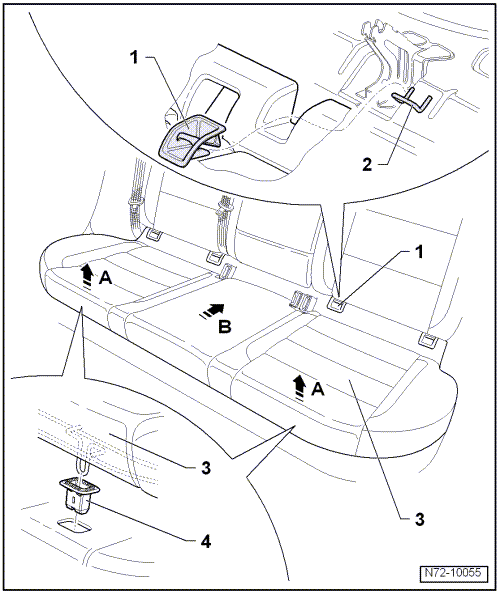

Fig 1: Identifying Rear Seat Bench Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
