Rear Seats: Backrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Sedan

-- Remove seat bench. Refer to SEAT BENCH .

Wagon

-- Fold the bench seat forward.

All Vehicles

-- Fold back floor carpet in area of center backrest bearing -4-.

-- If present, remove the trim -1- from the center backrest bearing.

-- Remove bolt -2- (9 Nm).

-- Remove clamp -3- from center backrest bearing.

-- Lift out right backrest -5- from center backrest bearing and pull backrest off pin -6-.

-- Remove bolt -8- (40 Nm) and remove belt buckle -9- from floor.

-- Remove right backrest from vehicle.

-- Lift out left backrest -7- from center backrest bearing and pull backrest off pin.

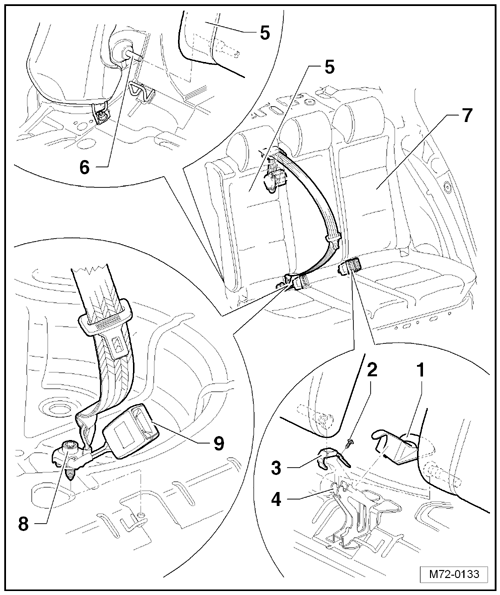

Fig 1: Identifying Backrest Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
