Airbag Component Location Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

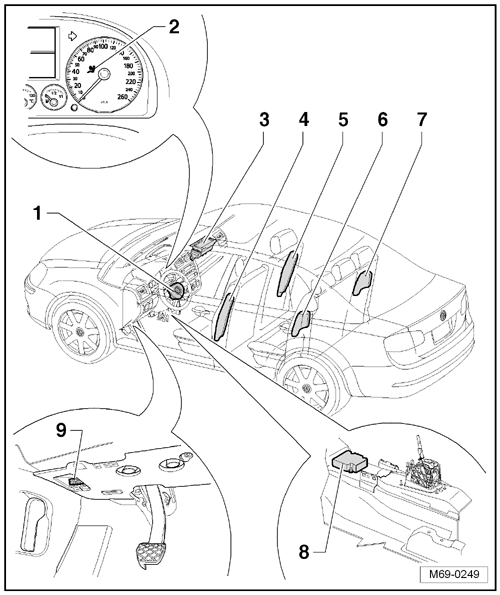

Fig 1: Identifying Airbag System Components, Overview Of Component Locations

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Driver Airbag Unit
- Removing and installing, refer to DRIVER SIDE AIRBAG
Airbag Malfunction Indicator Lamp (MIL) -K75-
Front Passenger Airbag Unit
- Removing and installing, refer to PASSENGER AIRBAG UNIT
Side Airbag, Driver Side
- Removing and installing, refer to DRIVER AND PASSENGER SIDE AIRBAG
Side Airbag, Front Passenger Side
- Removing and installing, refer to DRIVER AND PASSENGER SIDE AIRBAG
Rear Driver Side Airbag
- Removing and installing, refer to REAR SIDE AIRBAG
Rear Passenger Side Airbag
- Removing and installing, refer to REAR SIDE AIRBAG
Airbag Control Module -J234-
- Removing and installing, refer to AIRBAG CONTROL MODULE
- Adapting components (coding), refer to ADAPTING COMPONENTS
Diagnostic Connector

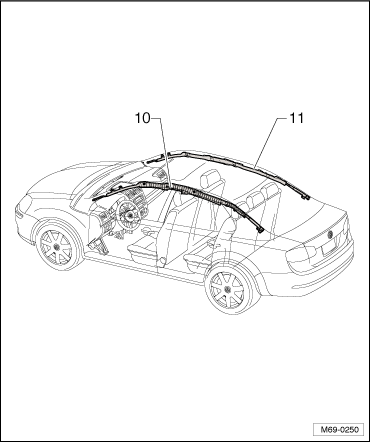

Fig 2: Airbag System Components, Overview Of Component Locations

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

- Driver Side Curtain Airbag
- Sedan, removing and installing, refer to DRIVER AND PASSENGER SIDE CURTAIN AIRBAG
- Wagon, removing and installing, refer to
- Front Passenger Side Curtain Airbag
- Sedan, removing and installing, refer to DRIVER AND PASSENGER SIDE CURTAIN AIRBAG
- Wagon, removing and installing, refer to
