Passenger Airbag Unit
Advanced Airbag System
The Advanced Airbag System refers to an airbag module with two airbag stages which are deployed depending on the severity of the accident. For less severe crashes, the second stage is not deployed.
- Airbag modules in which only the first stage has been deployed can cause severe injuries by deployment of the second stage.
- Read the Safety Instructions for working with airbags, belt tensioners and battery cut-out units. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS GENERAL SAFETY PRECAUTIONS .
At this time, there is no possibility of checking whether the second stage has been deployed definitively. For this reason, the airbag module must be disposed of in an orderly manner, conforming to national legislation, in its original packaging! Direct questions to your importer!
Disposal of undeployed airbag units as industrial waste/garbage is not permissible!
Removal
Read the Safety Instructions for working with airbags, belt tensioners and battery cut-out units. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS GENERAL SAFETY PRECAUTIONS .
-- Disconnect vehicle battery. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BRM, BGP, BPY, BGQ, CBTA, CBEA, CJAA, CBUA, CCTA, CBFA] Removal and Installation
-- Remove side instrument panel cover. Refer to INSTRUMENT PANEL SIDE COVERS .
-- Remove center A-pillar trim. Refer to CENTER A-PILLAR TRIM .
-- Remove center cover. Refer to CENTER COVER .
-- Remove glove compartment. Refer to GLOVE COMPARTMENT .
Electrostatic discharges can lead to an unintended deployment of the airbag. Therefore, mechanic must electrostatic discharge him-/herself before disconnecting harness connector. This is done, for example, by briefly touching the chassis or door striker pin.
-- Disconnect wiring harness from front passenger side airbag.

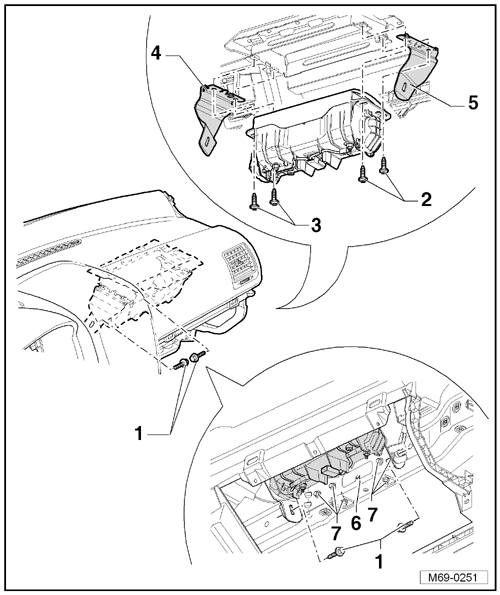

-- Remove the two bolts -1- (9 Nm).
-- Loosen the two bolts -2- and -3- respectively and turn the bolts 3 turns.
-- Remove the bracket -6- by removing the bolts -7- (9 Nm).
-- Now remove bolts -2- and -3- (9 Nm).
-- Remove front passenger's airbag and brackets -4- and -5- from mounts.
Installation
-- To install, perform the steps used for removal in reverse order.
If the passenger airbag housing is made of plastic, then use locking compound D 197 300 A2 to install the bolts -2- and -3- (9 Nm).
Check whether an additional ground cable must be routed in the vehicle:
If a passenger airbag is replaced, an additional ground cable must be routed in the vehicle in some cases.
The example shows a single-stage airbag module. For dual-stage airbag modules, the evaluation as to whether an additional ground cable must be routed in the vehicle is done similarly.
-- Check whether a ground cable is routed on the passenger airbag housing:
- With a passenger airbag with ground line -1-, the wiring harness -2- is a three-conductor harness, and in addition, another cable -3- is secured on the threaded pins -4-.
- With a passenger airbag without ground line -5-, the wiring harness -6- is a two-connector harness and no additional cable is secured on the threaded pins -7-.
On a passenger airbag without ground cable, route an additional ground cable in vehicle:
For the following work, use a cable (cross section 1 mm, length 600 mm) from the VAS 1978 or VAS 1978A.
-- Secure end of ground line with bolt -1- on right side of passenger airbag.
-- Route ground line correctly to right side of passenger footwell.
Lengthen the ground cable as needed with suitable instruments from the VAS 1978 or the VAS 1978A.
-- Secure other end of ground cable to ground pin -2-.
-- Switch on ignition.
Make sure that no persons are in the vehicle.
-- Connect vehicle battery. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BRM, BGP, BPY, BGQ, CBTA, CBEA, CJAA, CBUA, CCTA, CBFA] Removal and Installation .
