Airbag Control Module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the Airbag Control Module -J234- always not the safety guidelines when working on airbags, belt tensioners and battery cut-out units. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS GENERAL SAFETY PRECAUTIONS .

Removal

-- Disconnect vehicle battery. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BRM, BGP, BPY, BGQ, CBTA, CBEA, CJAA, CBUA, CCTA, CBFA] Removal and Installation

-- Unclip cover -1- from trim using a small screwdriver.

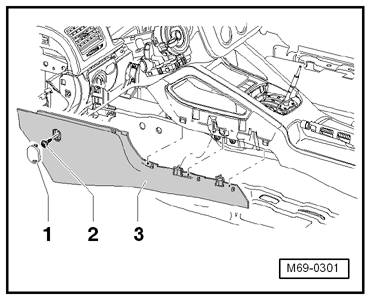

Fig 1: Identifying Cover -1-, Bolt -2- And Footwell Trim Panel -3-

GWWM69-0301

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolt -2- (1.5 Nm).

-- Remove the footwell trim panel -3-.

NOTE:

It is not necessary to remove the other parts of the center console.

-- Remove the nuts -1- (2.5 Nm).

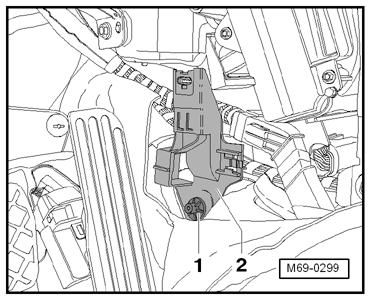

Fig 2: Identifying Nuts -1- And Bracket -2-

GWWM69-0299

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -2-.

NOTE:

Removal of right footwell trim is identical.

-- Unlock the connector -1- in -direction of arrow- and remove the wiring harness form the control module -2-.

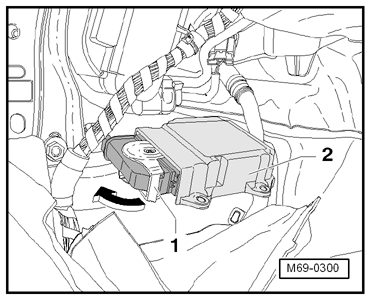

Fig 3: Identifying Connector -1- Unlocked In -Direction Of Arrow- To Remove Wiring Harness Form Control Module -2-

GWWM69-0300

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Center console is not depicted in the illustration.

-- Remove three nuts -3- (9 Nm).

-- Remove the control module from the vehicle.

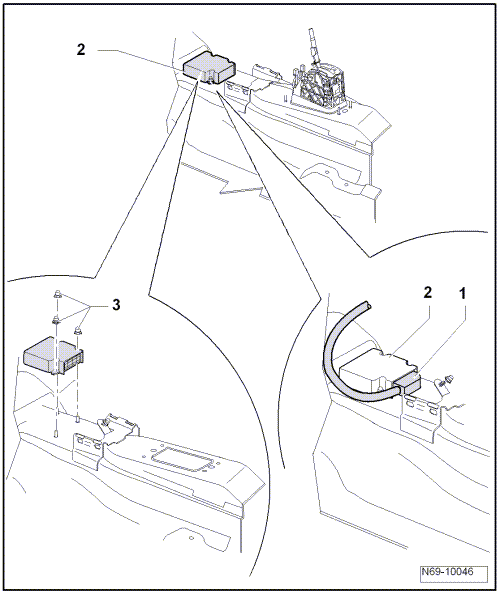

Fig 4: Identifying Airbag Control Module J234, Removing And Installing

GWWN69-10046

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.

-- Switch on ignition.

WARNING:

Make sure that no persons are in the vehicle.

-- Connect vehicle battery. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BRM, BGP, BPY, BGQ, CBTA, CBEA, CJAA, CBUA, CCTA, CBFA] Removal and Installation .

-- If Airbag Control Module -J234- was replaced, it must be coded. Refer to ADAPTING COMPONENTS .
