Lubrication System Overviews: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE:

If large quantities of metal particles or abraded material are detected during engine repairs, it may mean the crankshaft or rod bearings are damaged. To prevent further damage, perform the following steps after the repair:

Clean the oil passages.

Replace the oil spray jets.

Replace the oil cooler.

Replace the oil filter.

The oil level must not go above the MAX mark - danger of causing damage to the catalytic converter!

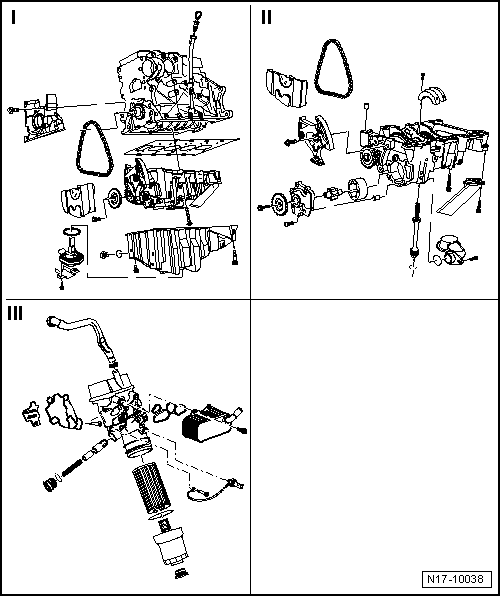

Fig 1: Lubrication System Components, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

I - OIL PAN
II - OIL PUMP WITH BALANCE SHAFT DRIVE
III - OIL FILTER BRACKET
