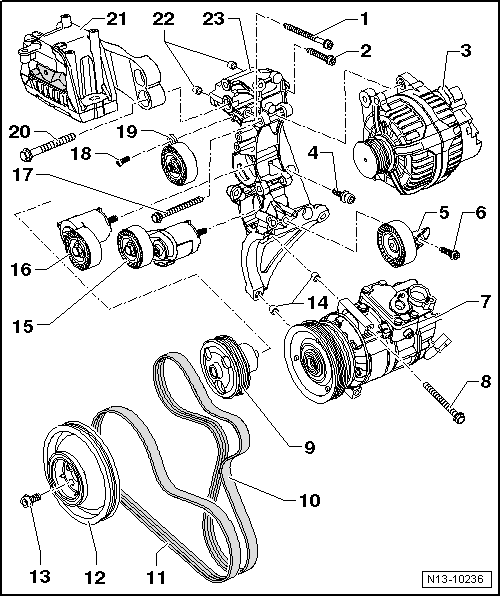

Ribbed Belt Overview
WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 25 Nm
- Bolt
- 25 Nm
- Generator
- Removing and installing, refer to Removal and Installation .
- To make it easier to position the generator, drive the threaded bushing for the generator bolt back slightly.
- Bolt
- 25 Nm
- Lower Idler Pulley with Bracket
- For the Air Conditioning (A/C) compressor ribbed belt.
- Do not remove the pulley.
- Bolt
- 25 Nm
- A/C Compressor
- Removing and installing, refer to "Refrigerant Circuit Components" in Removal and Installation .
- Bolt
- 25 Nm
- Coolant Pump
- In the cylinder block.
- Removing and installing, refer to COOLANT PUMP .
- Ribbed Belt, Generator, Power Steering Pump and Coolant Pump
- Belt routing, refer to Fig 2.
- Before removing, mark the rotation direction using chalk or a felt tip pen.
- Check for wear.
- Do not kink.
- Removing and installing, refer to RIBBED BELT .
- Ribbed Belt, A/C Compressor
- Belt routing, refer to Fig 2.
- Before removing, mark the rotation direction using chalk or a felt tip pen.
- Check for wear.
- Do not kink.
- Removing and installing, refer to RIBBED BELT .
- Vibration Damper
- To remove and install, lock the crankshaft. Refer to CRANKSHAFT, LOCKING .
- Bolt
- 50 Nm + an additional 90° (1/4 turn).
- Always replace.
- Only use strength category 10.9 bolts.
- Quantity: 5
- Bushing
- Quantity: 2
- Ribber Belt Tensioner, A/C Compressor Belt
- 35 Nm
- Do not remove the tensioning roller, remove the entire tensioner. Refer to RIBBED BELT TENSIONER, A/C COMPRESSOR .
- Ribbed Belt Tensioner, Generator, Power Steering Pump and Coolant Pump Belt
- 35 Nm
- Do not remove the tensioning roller, remove the entire tensioner. Refer to RIBBED BELT TENSIONER, GENERATOR, POWER STEERING PUMP AND COOLANT PUMP .
- Bolt
- 25 Nm
- Bolt
- 8 Nm
- Upper Idler Pulley with Bracket
- For the generator, power steering pump and coolant pump ribbed belt.
- Do not remove the pulley.
- Bolt
- 40 Nm + an additional 90° (1/4) turn.
- Engine Mount
- Bushing
- Quantity: 2
- Accessory Bracket
- Upper idler pulley
- Generator
- Lower idler pulley
- Ribbed belt, generator, power steering pump and coolant pump
- A/C compressor
- Ribbed belt, A/C compressor
- Vibration damper
- Belt tensioner, A/C compressor ribbed belt
- Belt tensioner, generator, power steering pump and coolant pump ribbed belt
- Coolant pump
