Coolant Pump

WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Bridge 10-222 A
Engine Support Adapter 10-222 A/3
Engine Support Feet 10-222 A/8
Shackle 10-222 A/12
Torque Wrench (5-50 Nm) V.A.G 1331
Torque Wrench (40-200 Nm) V.A.G 1332

CAUTION:

When doing any repair work, especially in the engine compartment, pay attention to the following due to clearance issues:

Route all lines and wires in their original locations.
Make sure there is enough clearance to moving or hot components to prevent damage to the lines.

Removing

-- Remove the engine cover with air filter. Refer to ENGINE COVER WITH AIR FILTER .

-- Remove the battery. Refer to Removal and Installation .

-- Remove the cover -1- for the E-box and remove the wire -2-.

Fig 1: Identifying Battery Holder & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and remove the battery tray.

WARNING:

Hot steam may escape when opening the expansion tank cap. Wear protective goggles and protective clothing to prevent damage to eyes and scalding. Cover the cap with a cloth and open very carefully.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the connecting pipe -4-.To do so, disconnect the Secondary Air Injection (AIR) connecting pipe -1-, f equipped and the vent tube -2- and reposition the spring clamp -3-.

Fig 2: Identifying Intake Hose, Air Hoses, Securing Ring & Spring Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER .

-- Remove the generator, power steering pump and coolant pump ribbed belt. Refer to RIBBED BELT .

-- Remove the 4 exhaust pipe with catalytic converter to exhaust manifold nuts -2- and the suspended mount bolts -3-.

Fig 3: Identifying Front Exhaust Pipe, Nuts & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the exhaust pipe with catalytic converter -1- from the manifold and tie up firmly to the side. Refer to EXHAUST PIPE WITH CATALYTIC CONVERTER .

NOTE:

The coupling element in the exhaust pipe with catalytic converter must not be bent more than 10°, otherwise it may be damaged.

-- Remove the pendulum support. Refer to Description and Operation .

with a Manual Transmission

-- Remove the shift mechanism from the transmission. Refer to SHIFT MECHANISM .

with a Automatic Transmission

-- Remove the selector lever cable from the transmission. Refer to SELECTOR HANDLE .

Installing the Engine Support Bridge10-222 A, Rabbit, from MY 2006 through 2009

-- Position the engine support bridge10-222 A with the engine support feet10-222 A/8. Support the engine and transmission assembly in the installed position using the engine support adapter 10-222A/3 and the shackle 10-222 A/12.

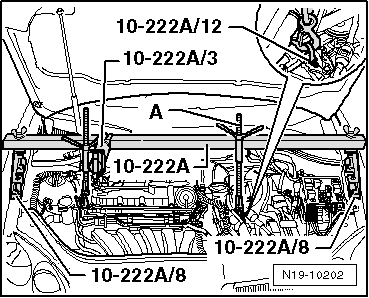

Fig 4: Installing Engine Support Bridge 10-222A With Adapters 10-222A/8 And Support Engine/Transmission Assembly In Installation Position Using Adapter 10-222A/3 And Shackle 10-222 A/12

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The illustration shows the arrangement with a automatic transmission.

In vehicles with a manual transmission, the spindle -A- is to be located toward the rear and secured to the reinforcement brace of the transmission.

Installing the Engine Support Bridge 10-222 A, Golf, from MY 2010

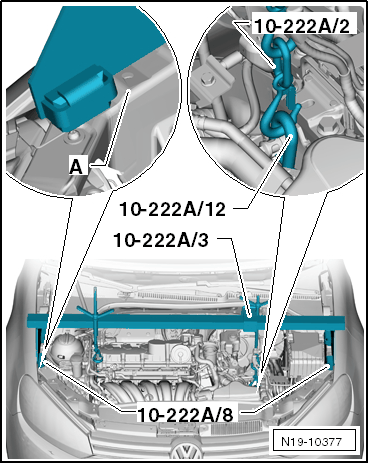

Fig 5: Engine Support Bridge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the engine support bridge10-222 A with the engine support feet10-222 A/8. Support the engine and transmission assembly in the installed position as illustrated.

Note the following:

The panel -A- must not be bent.
Secure the shackle10 - 222 A/12 on the reinforcing brace in vehicles with a manual transmissions and at the transport eye in vehicles with a automatic transmissions.

Continuation for All

-- Remove the bolt -2- and move the windshield washer fluid reservoir -1- toward the front.

Fig 6: Identifying Bolts, Windshield Washer Reservoir, Connector & Coolant Expansion Tank

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -6- and disconnect the connector -3-.

-- Remove the bolts -5- and place the coolant expansion tank on top of the engine with the hoses connected.

-- Remove the bolts -1, 2 and 3- and remove the engine mount.

Fig 7: Removing Engine Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Remove the single, lower rear bolt -2- through a hole in the wheel housing.

-- Remove the transmission mount to transmission mount bracket bolts -arrows-.

Fig 8: Identifying Left Subframe Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the engine as far as possible toward the front and to the left.

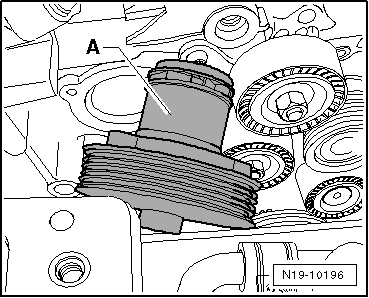

-- Remove the 3 coolant pump bolts and swivel the coolant pump -A- out as shown.

Fig 9: Identifying Swivel Coolant Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal. Note the following:

Note the installed position of the coolant pump. The sealing plug in the housing points downward.
Fill the coolant. Refer to COOLANT, DRAINING AND FILLING .
Install the battery. Refer to Removal and Installation .

Tightening Specifications

Component		Nm
Engine and transmission mount bolts		Refer to FASTENER TIGHTENING SPECIFICATIONS .
Coolant pump to cylinder block		10
