Selector Mechanism Overview, Through 02.09
WARNING: This page is about a different car, the 2009 Volkswagen Rabbit, 2008 Volkswagen Rabbit, 2007 Volkswagen Rabbit, and 2006 Volkswagen Rabbit. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Move the selector lever into the "P" position and set the parking brake before working with the engine running.

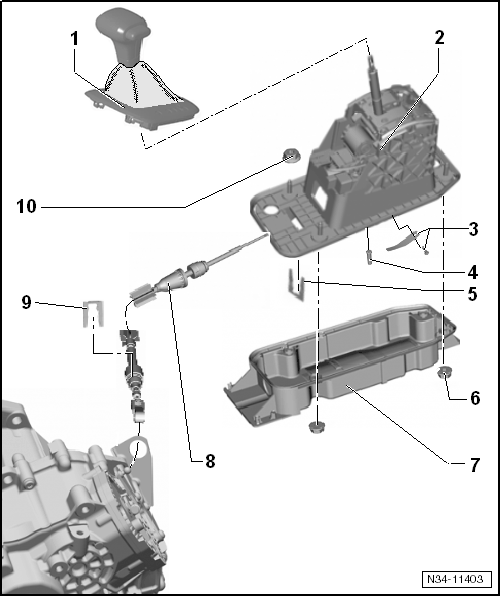

- Selector Handle with Cover
- Do not remove the handle unnecessarily. For emergency release, only the cover needs the be removed. Refer to SELECTOR LEVER, MANUAL RELEASE .
- Pull the button past its pressure point before removing the handle. Secure the button with a tie strap or tape. This prevents the button from being pushed back into the handle accidentally.
- If the button is pushed in:
-- Just before installing, pull the button out beyond the press point (sense this by touch).
- Selector Mechanism with Selector Lever.
- Removing and installing, refer to SELECTOR MECHANISM WITH LEVER, THROUGH 02.09 .
- Bolt with Spring
- 3 Nm
- Pin
- Removing, refer to SELECTOR LEVER CABLE, THROUGH 02.09 .
- Do not lubricate.
- Retainer
- Always replace after removing.
- Nut
- 9 Nm
- Quantity: 4
- Selector Housing
- With seal.
- Selector Lever Cable
- Do not grease the cable.
- Removing and installing, refer to SELECTOR LEVER CABLE, THROUGH 02.09 .
- Checking, refer to SELECTOR LEVER CABLE, CHECKING .
- Adjusting, refer to SELECTOR LEVER CABLE, ADJUSTING .
- Retainer
- Nut
- 8 Nm
- Quantity: 4
