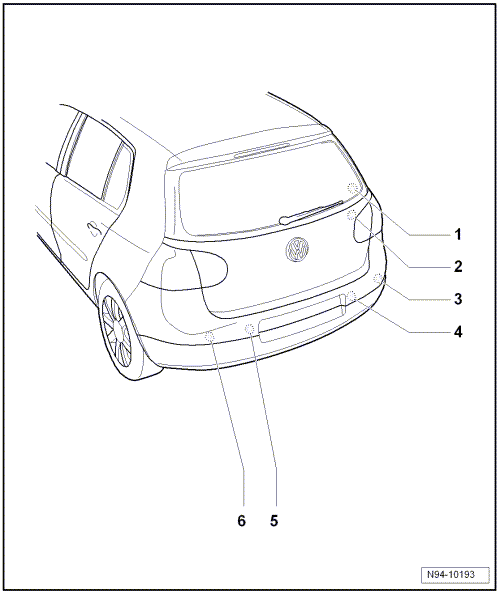

Parking Aid, Assembly Overview
- Parking Aid Warning Buzzer -H15-
- Behind right luggage compartment cover support
- Removing and installing, refer to REAR PARKING AID WARNING BUZZER, REMOVING AND INSTALLING
- Parking Aid Control Module -J446-
- behind the luggage compartment right side trim.
- Removing and Installing, refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING
- Right Rear Parking Aid Sensor -G206-
- in the rear bumper cover.
- Removing and Installing, refer to REAR PARKING AID SENSORS, REMOVING AND INSTALLING
- See the information on sensor names DIFFERENT SENSOR NAMES .
- Right Rear Center Parking Aid Sensor -G205-
- in the rear bumper cover.
- Removing and Installing, refer to REAR PARKING AID SENSORS, REMOVING AND INSTALLING
- See the information on sensor names DIFFERENT SENSOR NAMES .
- Left Rear Center Parking Aid Sensor -G204-
- in the rear bumper cover.
- Removing and Installing, refer to REAR PARKING AID SENSORS, REMOVING AND INSTALLING
- See the information on sensor names DIFFERENT SENSOR NAMES .
- Left Rear Parking Aid Sensor -G203-
- in the rear bumper cover.
- Removing and Installing, refer to REAR PARKING AID SENSORS, REMOVING AND INSTALLING
- See the information on sensor names DIFFERENT SENSOR NAMES .
NOTE:
Due to different software versions, different sensor names may be displayed in the first Parking Aid Control Module -J446- software version. If this is the case, the follow allocation applies:
Left Rear Center Parking Aid Sensor -G204- is Left Rear Parking Aid Sensor -G203-
Left Rear Inner Parking Aid Sensor -G334- is Left Rear Center Parking Aid Sensor -G204-
Right Rear Inner Parking Aid Sensor -G335- is Right Rear Center Parking Aid Sensor -G205-
Right Rear Center Parking Aid Sensor -G205- is Right Rear Parking Aid Sensor -G206-
