Parking Aid Control Module -J446-, REMOVING AND INSTALLING

Control Module for parking aid is located behind side wall trim in luggage compartment, right side.

Removing:

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove right side panel trim. Refer to Luggage Compartment Trim .

-- Disconnect harness connectors -1- by pressing lugs -arrows- inward.

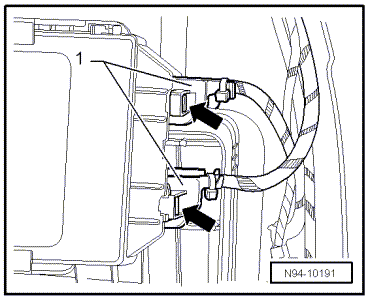

Fig 1: Parking Aid Control Module J446 Harness Connector Lugs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press lugs -arrows- of bracket outward and remove parking aid control module -1- out of bracket.

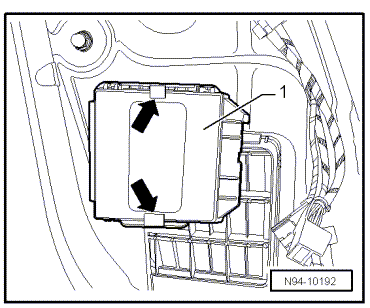

Fig 2: Locating Lugs Of Bracket And Parking Aid Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing:

Install in reverse order of removal.
